WYRESTORM VIDEO PROCESSOR 4K 60HZ OUTPUT VIDEO WALL SW0206VW

Name: WYRESTORM VIDEO PROCESSOR 4K 60HZ OUTPUT VIDEO WALL SW0206VW
Brand: Wyrestorm
SKU: SW0206VW
Availability: InStock

SKU:SW0206VW

Shipping calculated at checkout.

Sold As: EACH

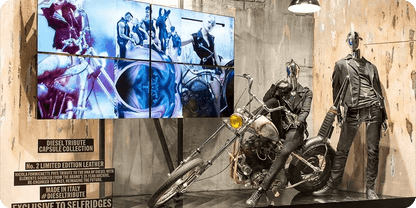

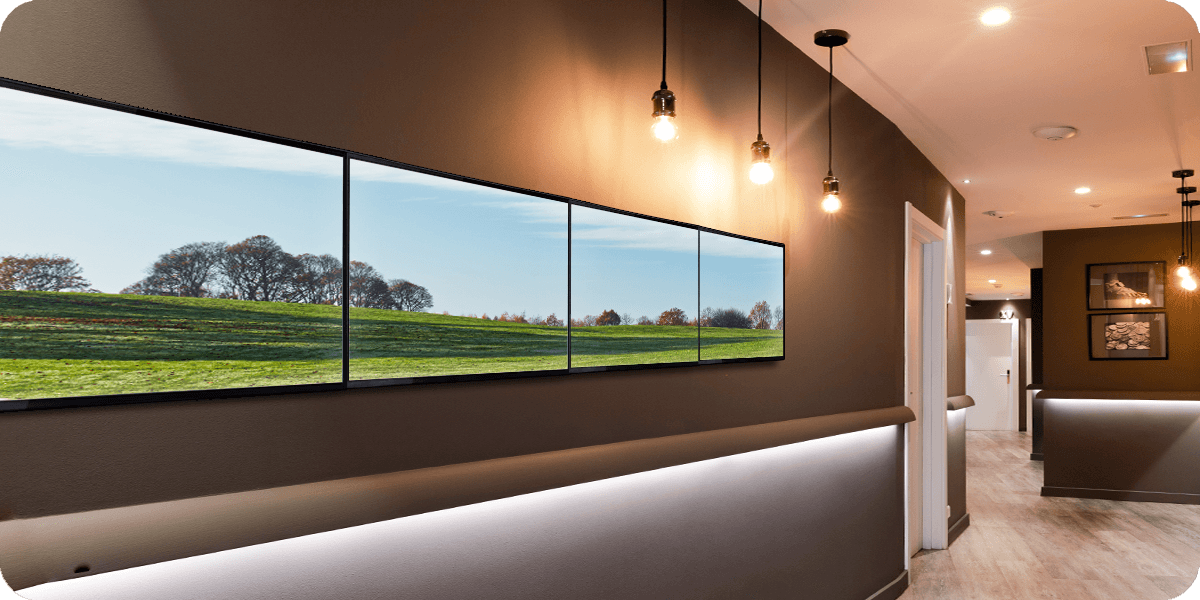

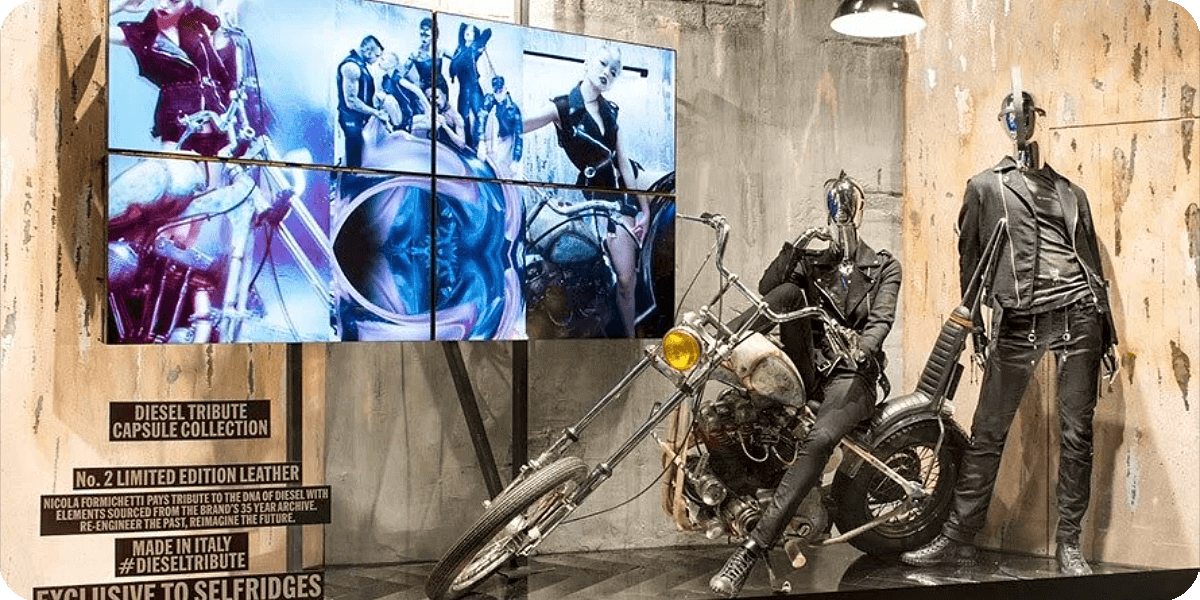

The SW-0206-VW is a 4K Video Wall Processor for multiple splicing layout, aiming to provide extreme viewing experience for customer. It offers 2 HDMI inputs (alternative) and 6 HDMI outputs to create a multiple splicing video wall, while it also provides 4K and ultra-wide resolution support, independent analog audio output and imaging scaling to establish a fully immersive experience. For flexible control, SW-0206-VW also supports various methods, such as a user-friendly Web-UI, front panel control button, RS232 and Telnet control options.

AUDIO AND VIDEO

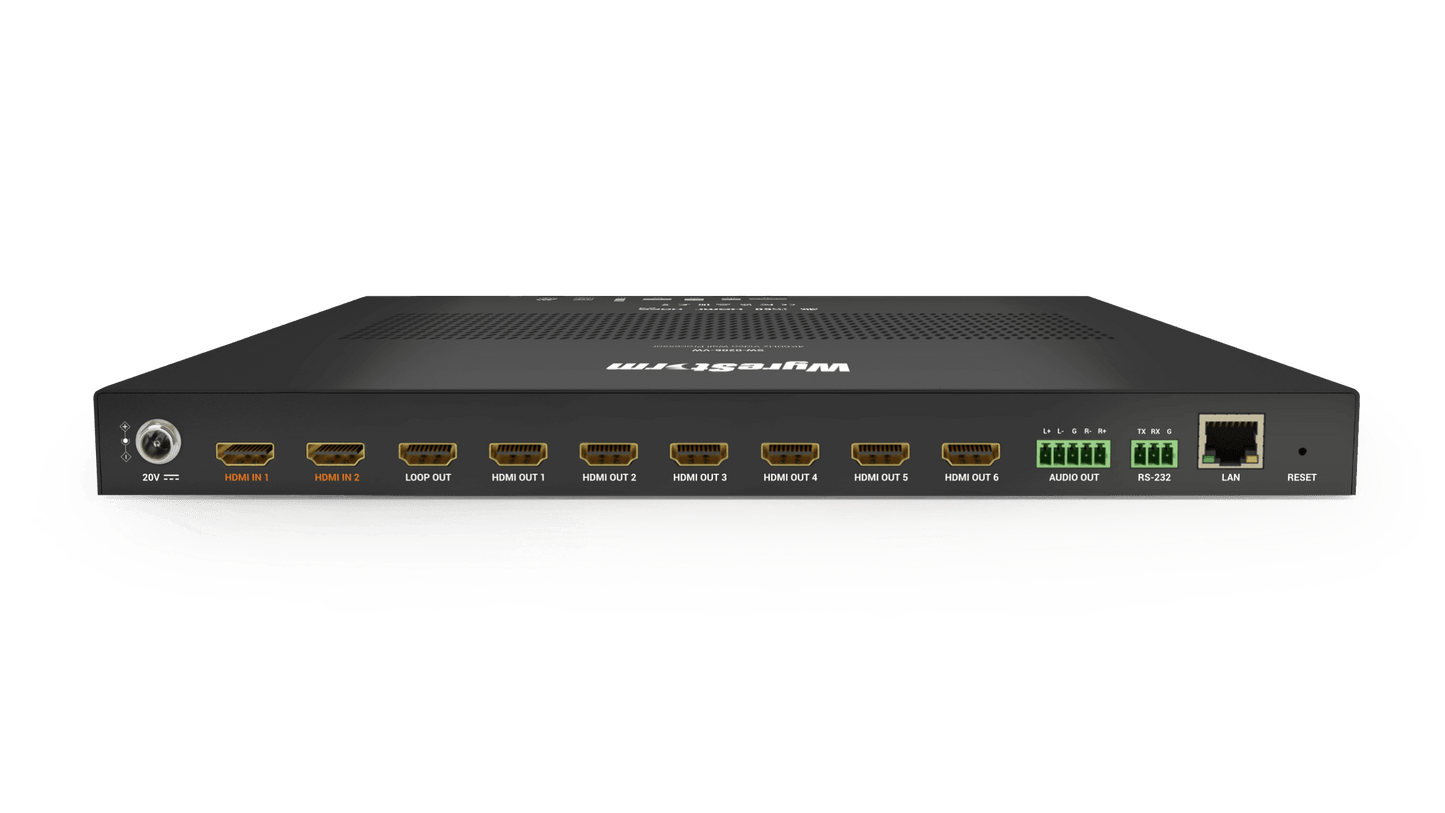

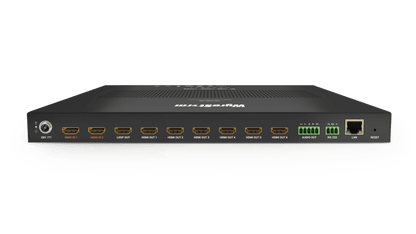

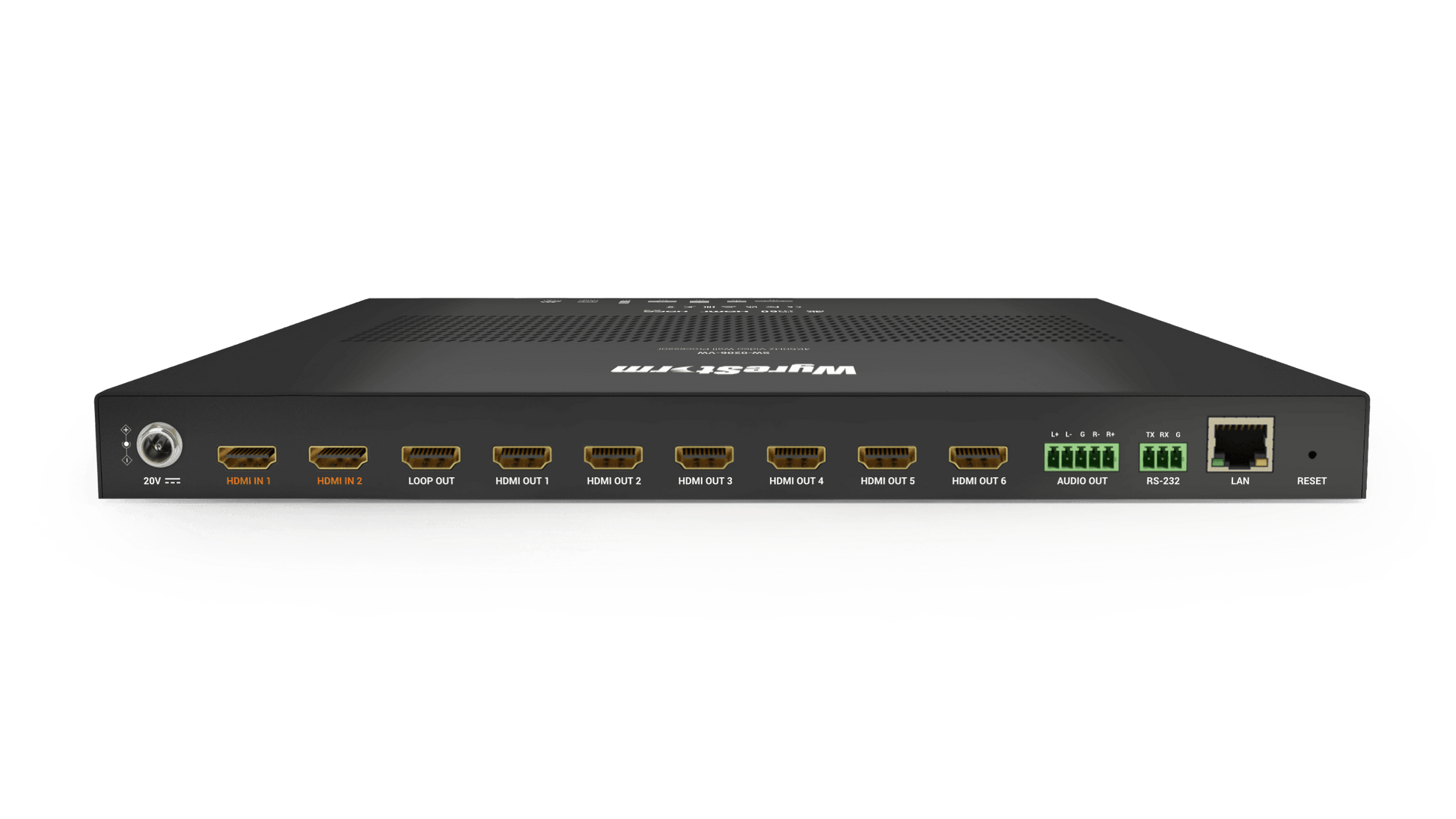

Inputs

2x HDMI IN: 19-pin type A

Outputs

6x HDMI OUT: 19-pin type A
1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input)

Audio Formats

PCM 2ch Analog

Input Video Resolution

800 x 600⁸, 1024 x 768⁸, 1280x720P^6,7,8 , 1280 x 768⁸, 1280 x 800⁸, 1280 x 960⁸, 1280 x 1024⁸, 1360 x 768⁸, 1366 x 768⁸, 1440 x 900⁸, 1600 x 900⁸, 1600 x 1200⁸, 1680 x 1050⁸,1920x1080P^6,7,8 , 1920 x 1200⁸, 3840 x 600⁸, 3840x2160P^2,3,5,8* , 4096x2160P^2,3,5,8*, 5400x1920P⁵,

^{1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz.}

Video Resolution (Max)

Auto-Scaler (scale up and down to any resolution —
up to 4K@60Hz)
1920x1080p @60Hz 4:4:4 8bit
3840x2160p @60Hz 4:4:4 8bit
4096x2160p @60Hz 4:4:4 8bit

Maximum Pixel Clock

600MHz

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.3 | EDID | CEC

RS-232

1x RS-232: 3-pin Phoenix Female | Video-Wall Processor Control
Routable RS-232 Device Control | Telnet commands supported

Ethernet

1x LAN: 8-pin RJ-45 Female | Web UI | Video-Wall Control and Ethernet

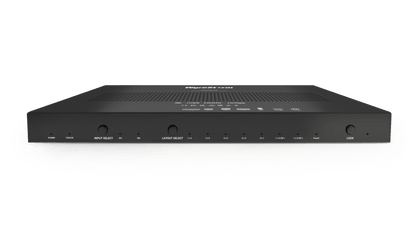

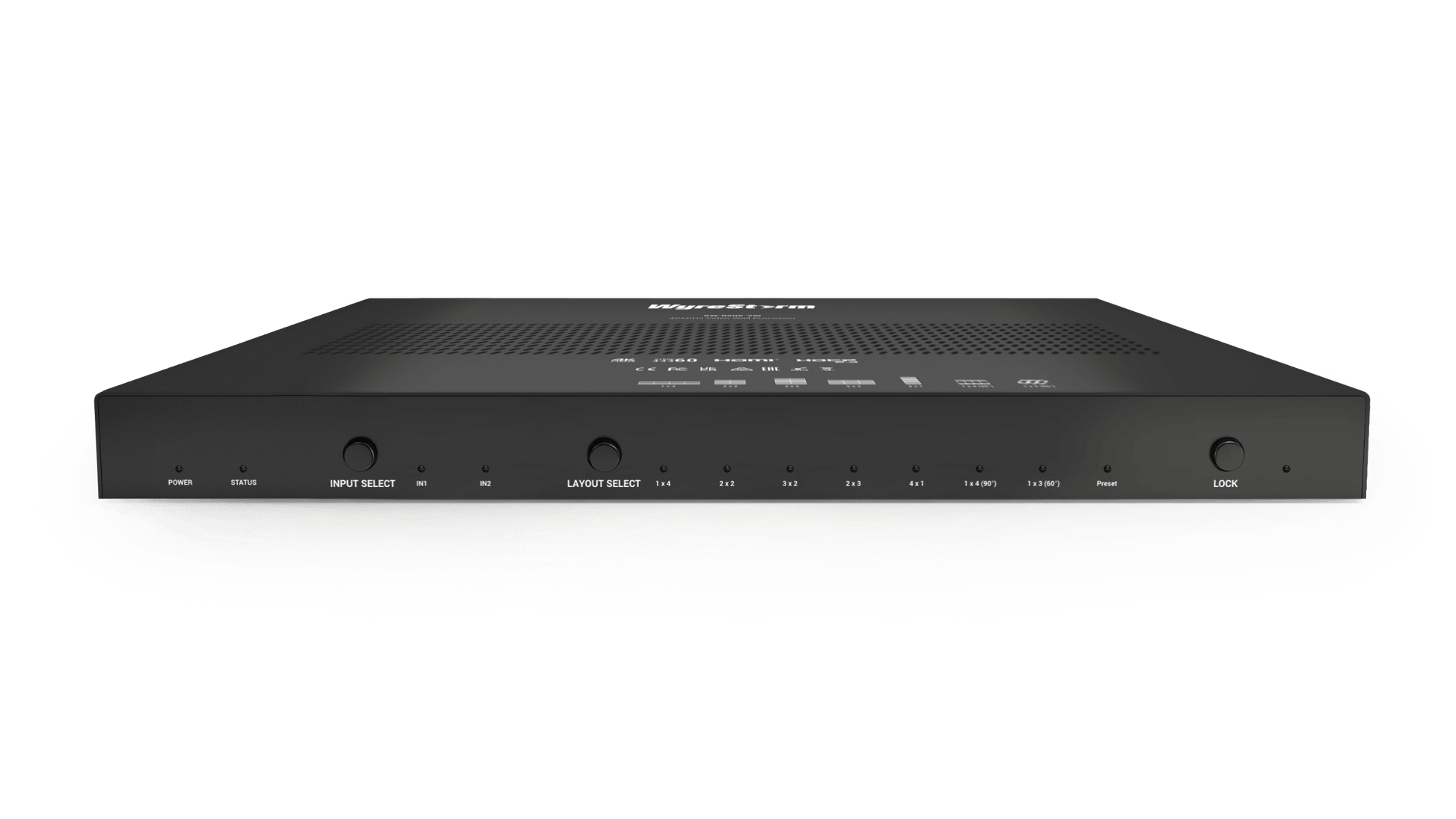

Input Button

1x Input button | Input source selection

Lock Button

1x Lock button | Button Lock

Layout Mode Button

1x Layout mode button | Layout mode selection | (1×4, 2×2, 3×2, 2×3, 4×1, 1×4[90°], 1×3[60°], Preset)

POWER

Power Supply

DC 20V/3A

ENVIRONMENTAL

Operating Temperature

0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature

-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

DIMENSIONS & WEIGHT

Dimensions

27mm/1.06in x 320mm/12.6in x 180mm/7.09in

REGULATORY

Supported Standards

DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020
