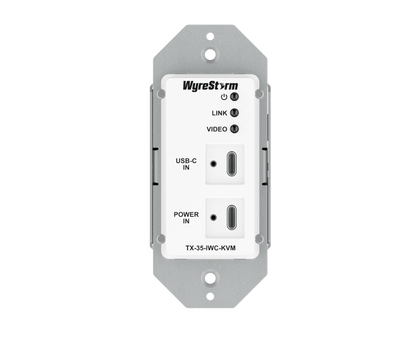

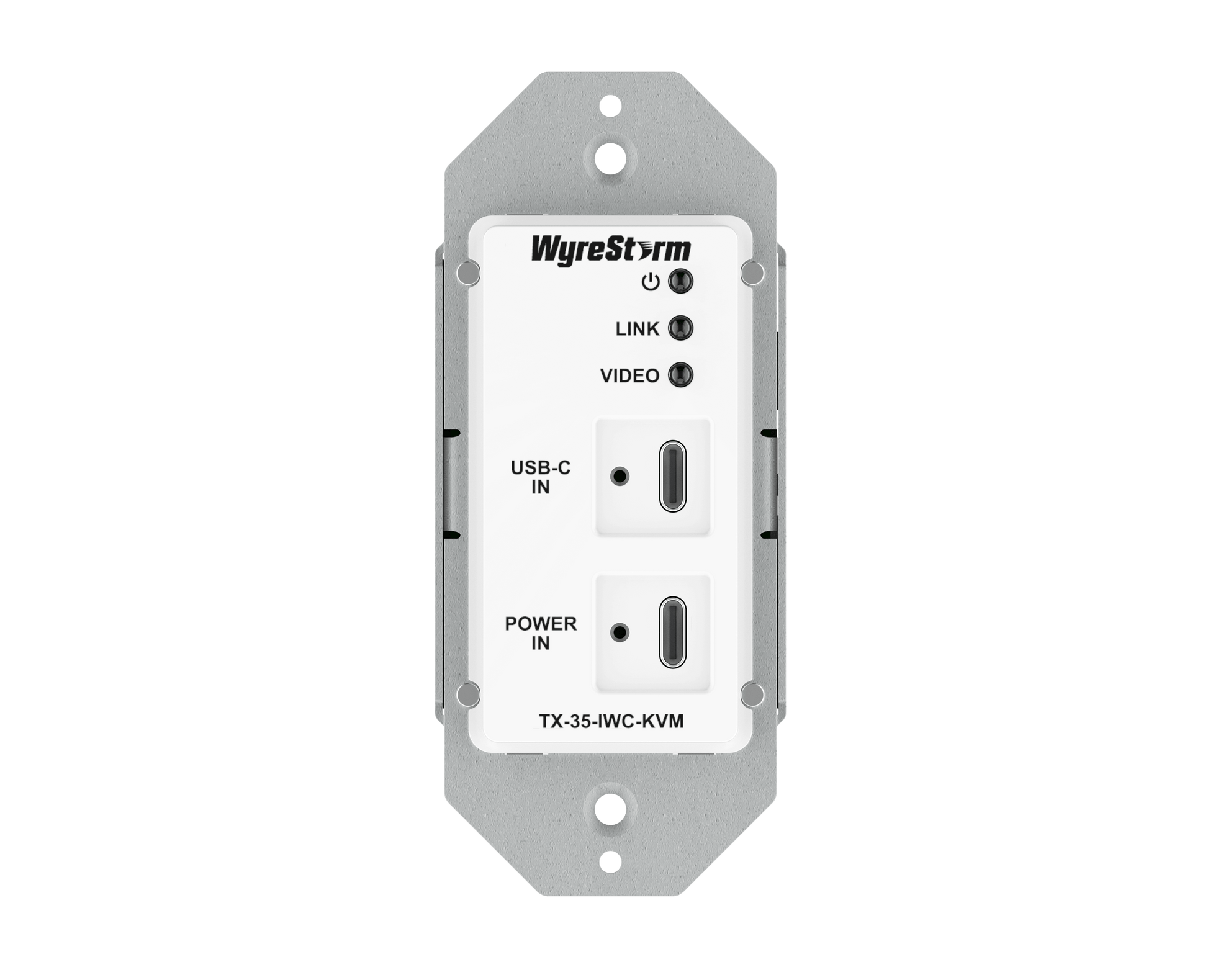

The TX-35-IWC-KVM is a reliable single Gang US Style HDBaseT 2.0 Transmitter that provides a practical solution for extending video and control signals. Featuring a USB Type C input, any source support Display Port Alt mode can be extended with ease. With support for 4K 60 maximum resolution and USB 2.0 extension (150Mbps), it’s well-suited for use in conference rooms, classrooms, and training facilities, ensuring that your signals are transmitted effectively to where they are needed. To enhance its performance, pairing it with the RX-500 is recommended. This setup offers a straightforward way to improve signal transmission in any professional environment. Don’t forget to connect a Type C Power supply to the included power input to power your connected device with up to 100W charging
AUDIO AND VIDEO
Inputs
1 x USB Type C Input 1 x USB Type C Power Input (for device charging, will not power TX)
Outputs

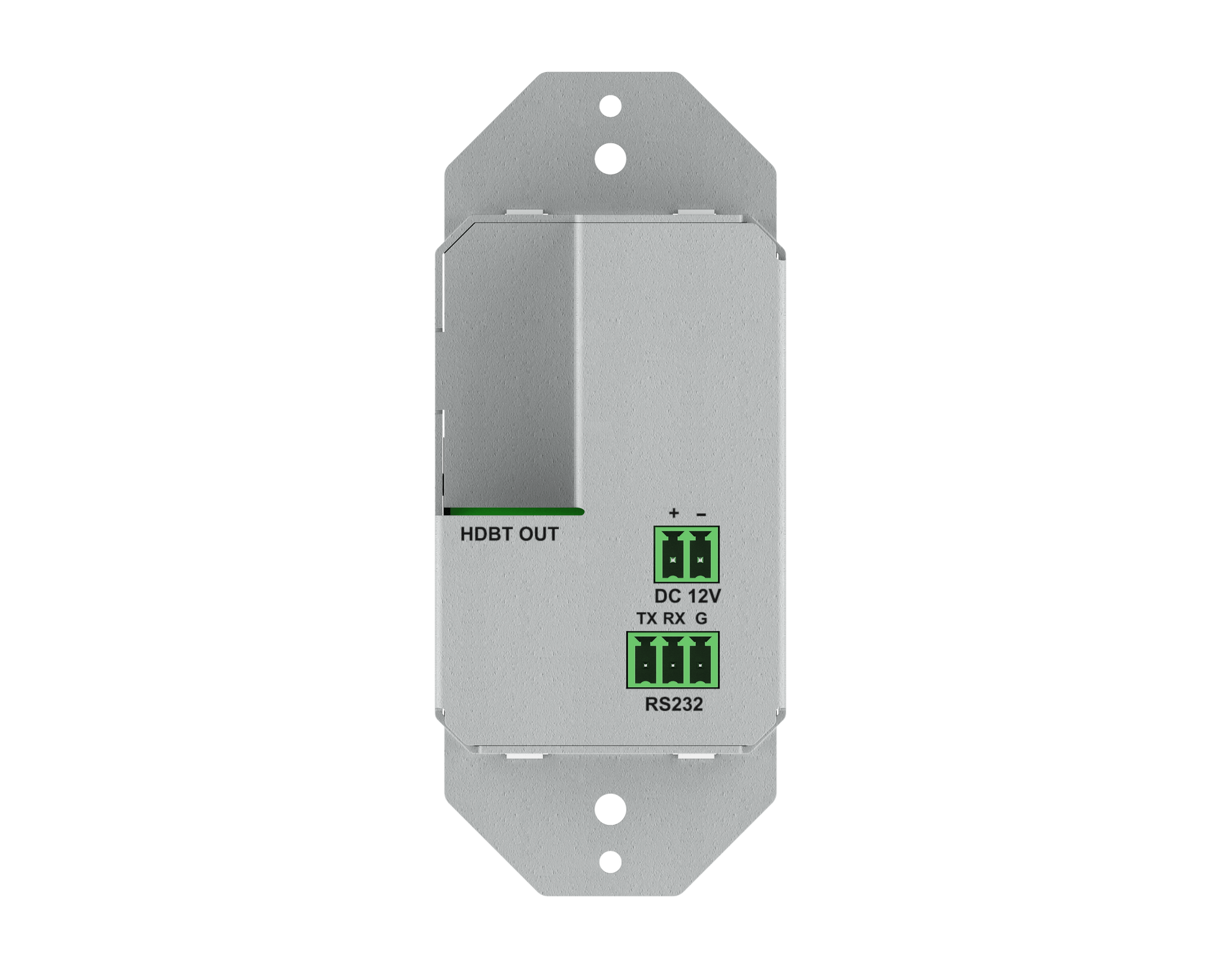

1x HDBT Out: RJ45 Female
Audio Formats
Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
