WYRESTORM HDBT 70M/4K 100M/1080P W/ARC RECEIVER RX704KARC

WYRESTORM HDBT 70M/4K 100M/1080P W/ARC RECEIVER RX704KARC

RX704KARC

Login to view pricing.
Shipping calculated at checkout.

Sold As: EACH

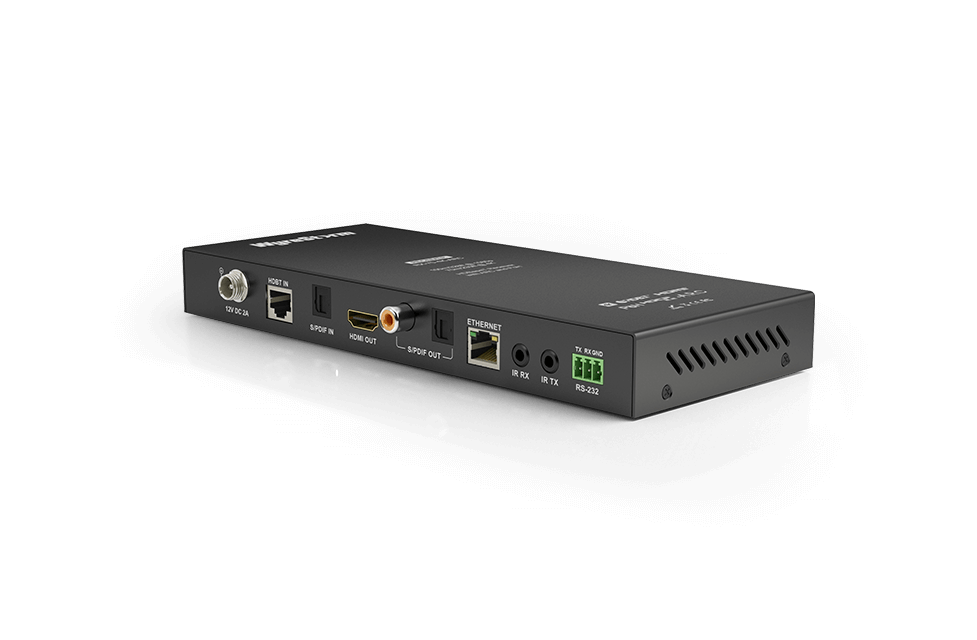

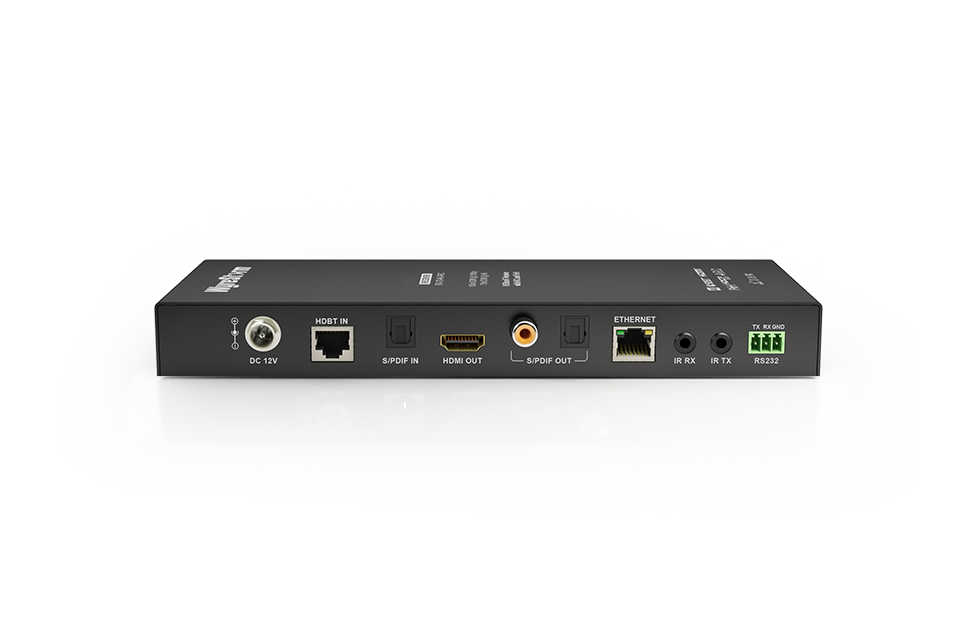

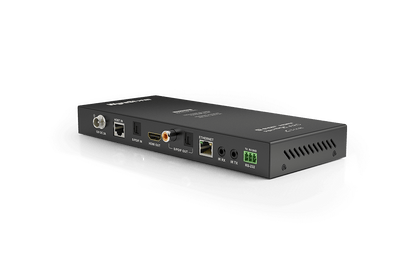

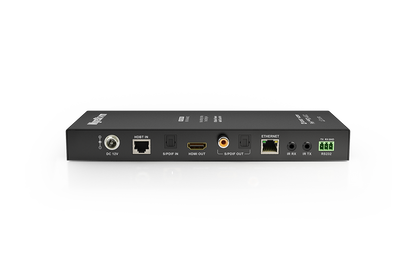

Free the audio from SmartTV on-demand content with the RX-70-4K-ARC HDBaseT receiver supporting ARC or optical audio return to enable digital audio to be sent back to a compatible WyreStorm HDBaseT transmission device, such as an H2 model matrix switcher.

AUDIO & VIDEO

Inputs

1x HDBaseT In: 8-pin RJ-45 female
1x S/PDIF In: TOSLINK (Digital Optical)

Outputs

1x HDMI 19-pin type A
1x S/PDIF Out: RCA Female (Digital Coax), TOSLINK (Digital Optical)

Audio Formats

HDMI: 2ch and Up to DTS-X and Dolby Atmos
RX S/PDIF IN: 2ch PCM | Up to DTS digital and Dolby digital

Video Resolution Max

1920x1080p @60Hz 48bit
3840x2160p @30Hz 24bit 4:4:4
3840x2160p @24Hz 30bit 4:2:0 HDR
4096x2160p @60Hz 24bit 4:2:0

Color Depth

1080p: 48bit | 4K UHD: 24bit | HDR @24p: 30bit BT.2020

Maximum Pixel Clock

297MHz

COMMUNICATION & CONTROL

HDMI

HDCP 2.2 | EDID | DVI/D supported with adapter (not included)

HDBaseT

HDCP 2.2 | EDID | PoH (2-way) | Bidirectional IR, RS-232, and Ethernet

Ethernet

1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Bidirectional over HDBaseT

IR

1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT
1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT

RS-232

1x 3-pin Phoenix Connector | Bidirectional over HDBaseT

ARC

Returns audio to source location from remote display via HDBaseT

POWER

Power Supply

Input: 100~240V AC 50/60Hz | Output: 12V DC 2A

PoH

48V

Max Power Consumption

7.2W
