Wyrestorm

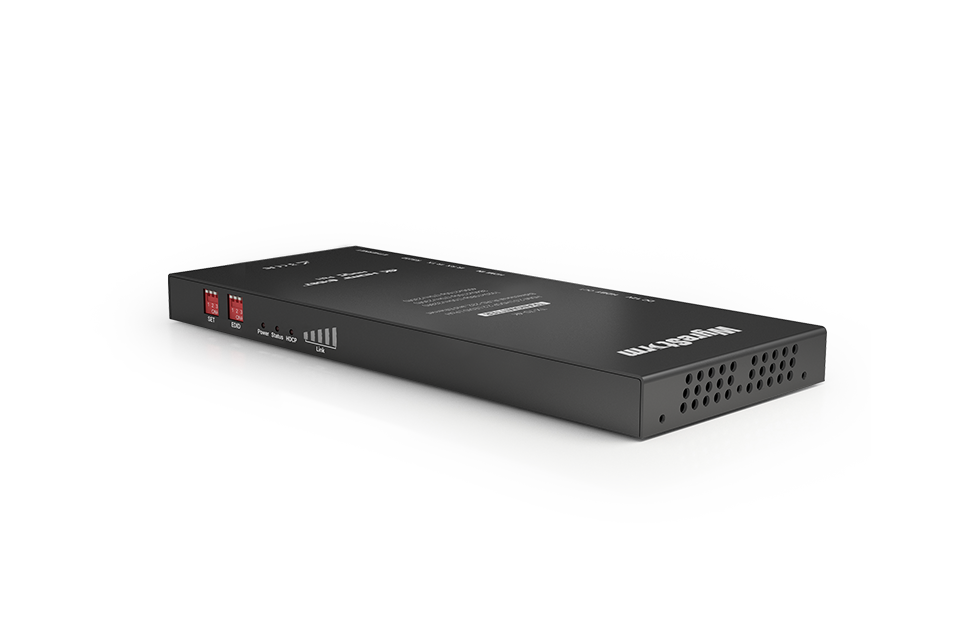

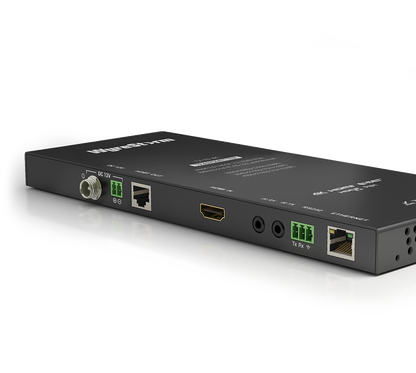

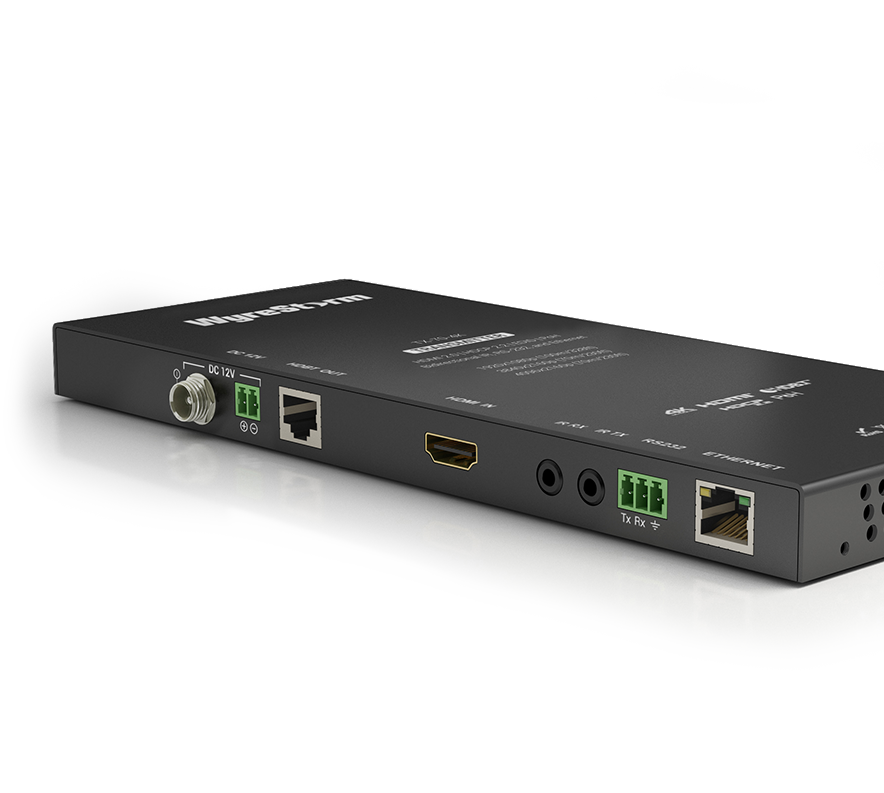

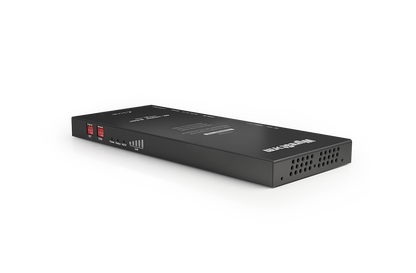

WYRESTORM 4K UHD TRANSMITTER 70M TX704K

Name: WYRESTORM 4K UHD TRANSMITTER 70M TX704K
Brand: Wyrestorm
SKU: TX704K
Availability: InStock

SKU:TX704K

Shipping calculated at checkout.

Sold As: EACH

For flagship HDBaseT Transmission performance, look no further than the TX-70-4K. Class A HDBaseT transmission means support for 4K UHD content; even HDR-10 @24Hz, up to 70m/230ft. 2-way PoH and EDID management completes this fully-loaded specification.

AUDIO & VIDEO

Inputs

1x HDMI: 19-pin HDMI type A female

Outputs

1x HDBaseT: 8-pin RJ-45 female

Output Video Encoding

HDBaseT Class A

Maximum Sampling Rate

192KHz

Audio Formats

2ch PCM | Up to DTS-X and Dolby Atmos

Video Resolutions (max)

1920x1080p @60Hz 16bit
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @24Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

Color Depth (Max)

12bit

Maximum Pixel Clock

297MHz

COMMUNICATION & CONTROL

HDMI

HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)

HDBaseT

HDMI | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR, RS-232, and Ethernet

Ethernet

1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Bidirectional over HDBaseT

1x IR TX 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT
1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT

RS-232

1x 3-pin Phoenix Connector | Bidirectional over HDBaseT

POWER

Power Supply

Input: 100~240V AC 50/60Hz | Output: 12V DC 2A

PoH

48V 15.4W

Max Power Consumption

26.5W
