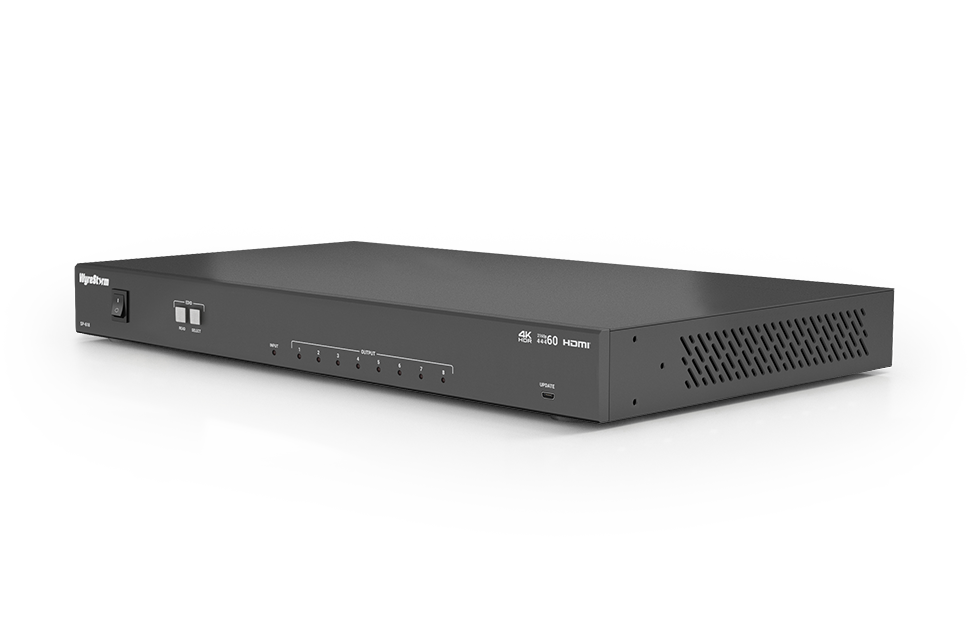

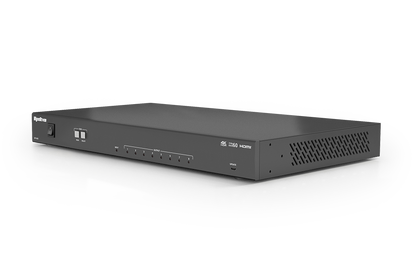

The SP-618 is a simple yet powerful HDMI splitter that can be used in many applications from digital signage to retail or hospitality. Each HDMI output of the SP-618 features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. A balanced analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs. With a 1U chassis, the SP-618 can be easily fitted in standard 19?? equipment racks for a tidy installation.
Uncompressed HDMI signal distribution supporting full 18Gbps bandwidth and 4K60 444 video content
Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG

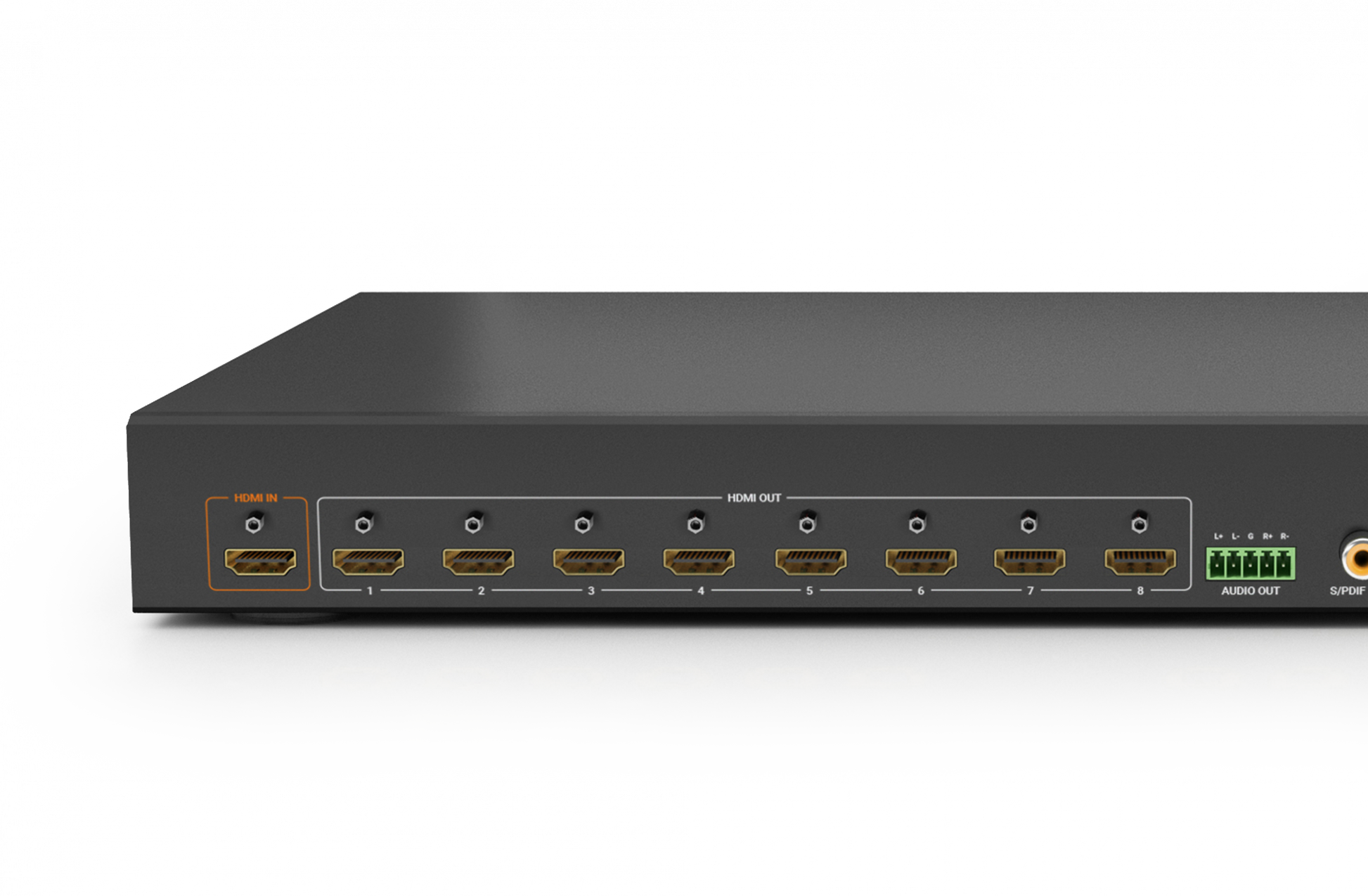

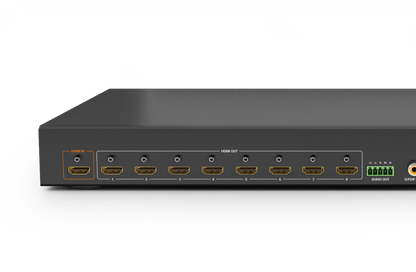

Balanced analog audio de-embed and a digital S/PDIF de-embed for distributing audio to an amplifier or DSP
Each HDMI output supports 4K to 1080p downscaling to support mixed resolution systems
Output downscaling controlled through easy to use dipswitches
EDID Management through RS232 API, dipswitches, or front panel Read & Select buttons
RS232 API for controlling EDID settings and querying HDMI connection status, resolution, etc.
1U 19?? chassis for convenient installation into standard equipment racks
