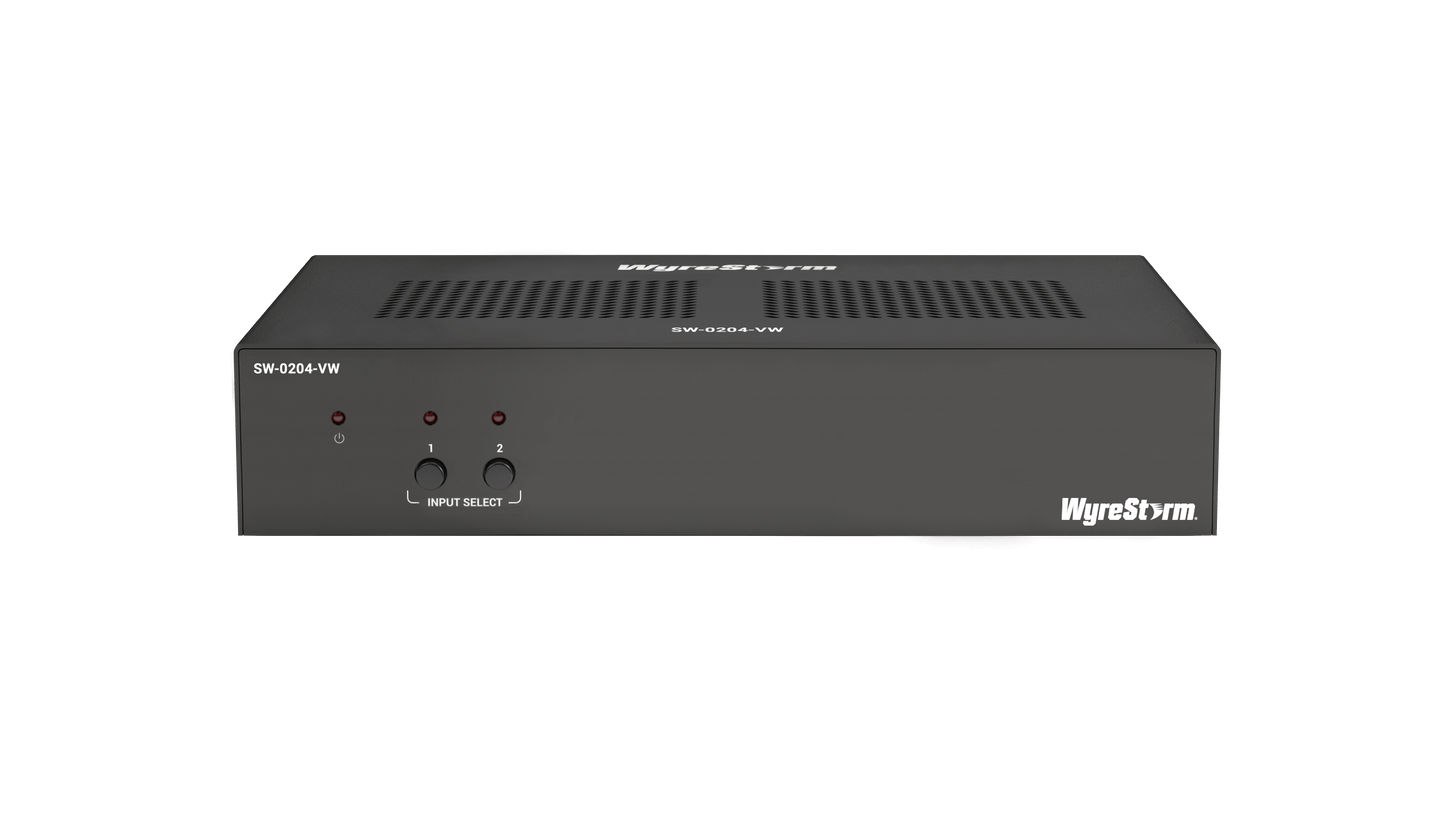

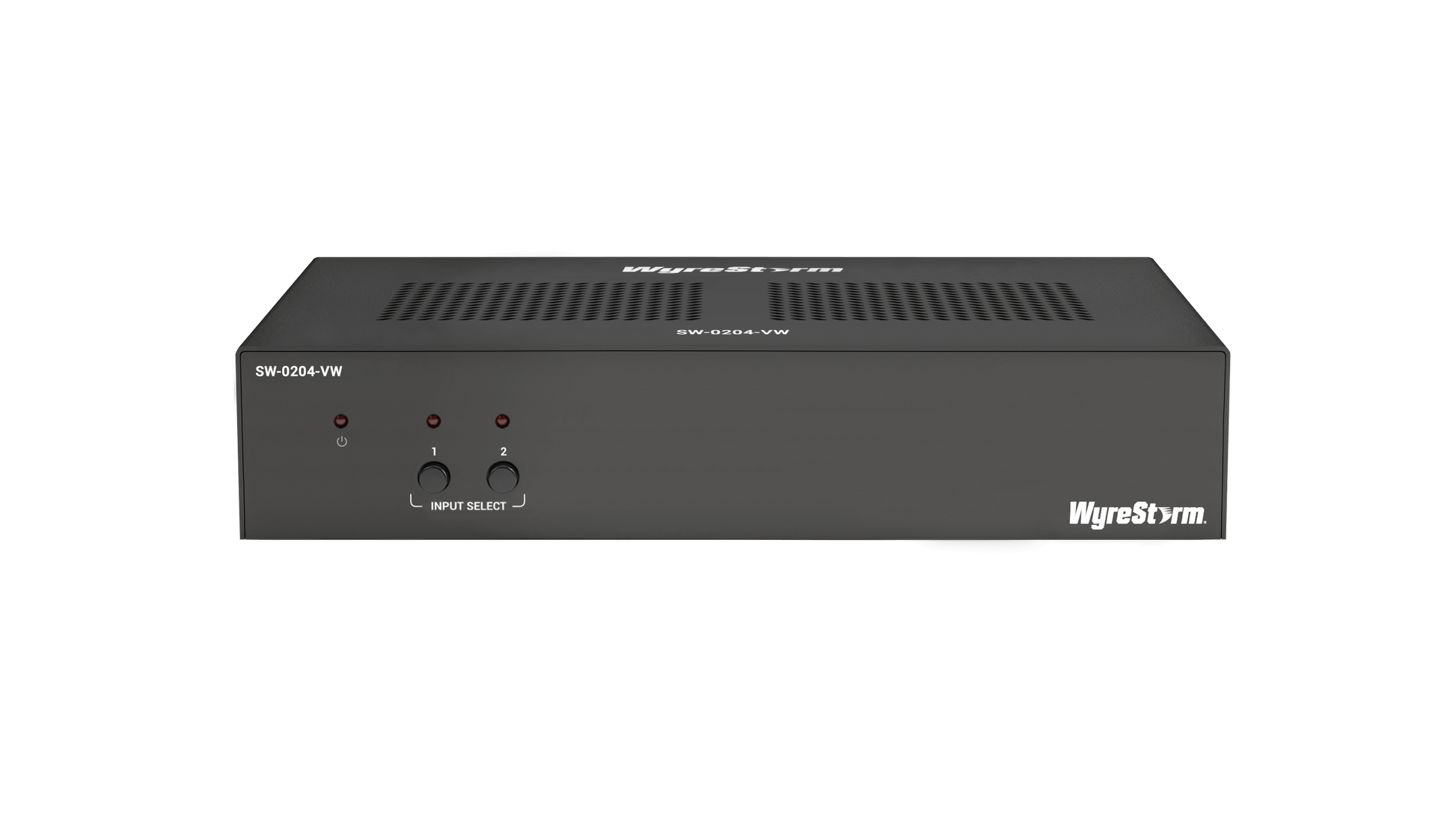

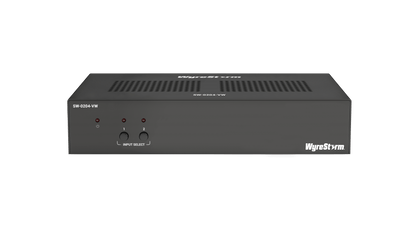

WYRESTORM 4K 60HZ VIDEO WALL VIDEO PROCESSOR SW0204VW

Name: WYRESTORM 4K 60HZ VIDEO WALL VIDEO PROCESSOR SW0204VW
Brand: Wyrestorm
SKU: SW0204VW
Availability: InStock

SKU:SW0204VW

Shipping calculated at checkout.

Sold As: EACH

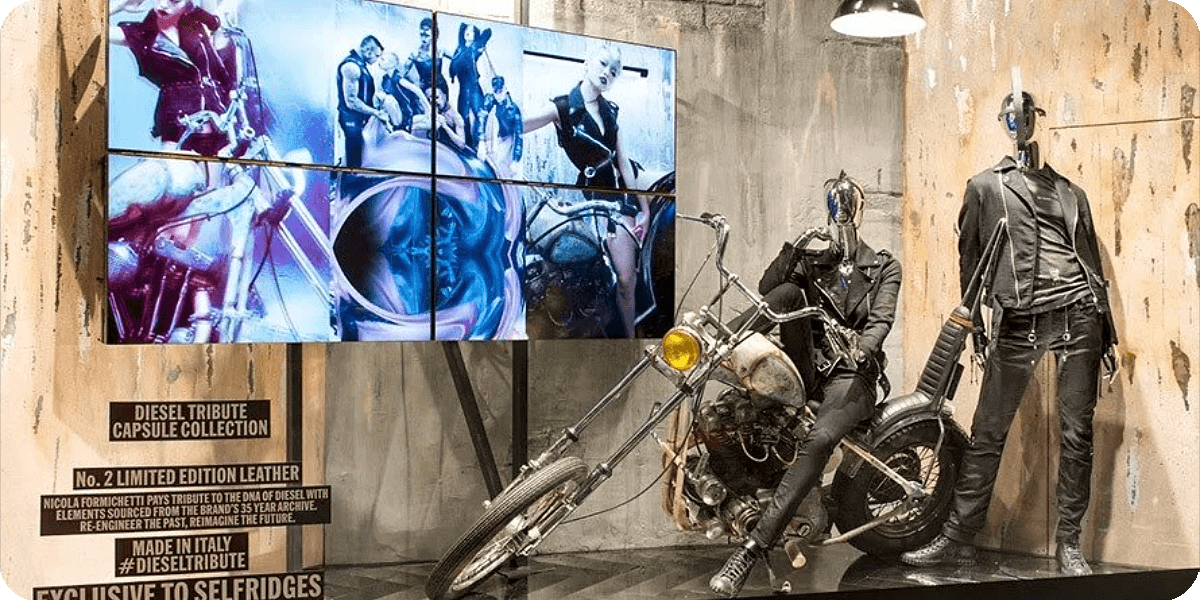

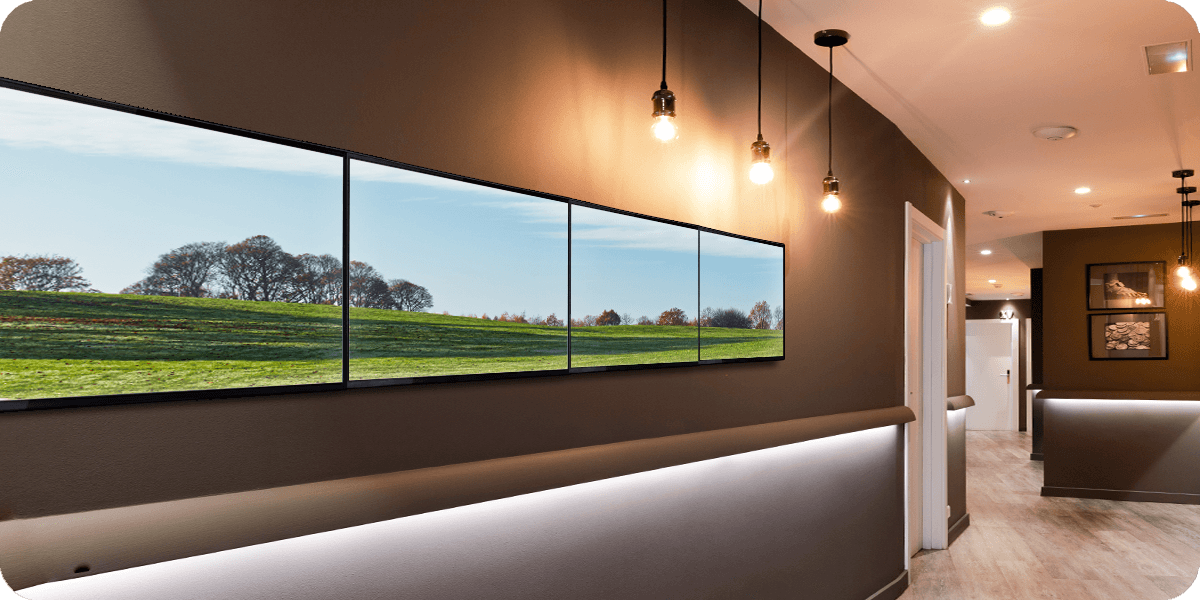

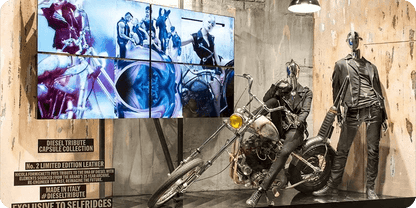

The SW-0204-VW 4x HDMI 2.0 Video Wall processor is an advanced 2x inputs (alternative) and 4x outputs video wall processor, providing video wall layout of 1×4 and 2×2 (rows x columns) with 4K and ultra-wide resolution support, independent analog audio output and image scaling. It also supports a user-friendly Web-UI, RS232 and Telnet for optimal flexibility control.

AUDIO AND VIDEO

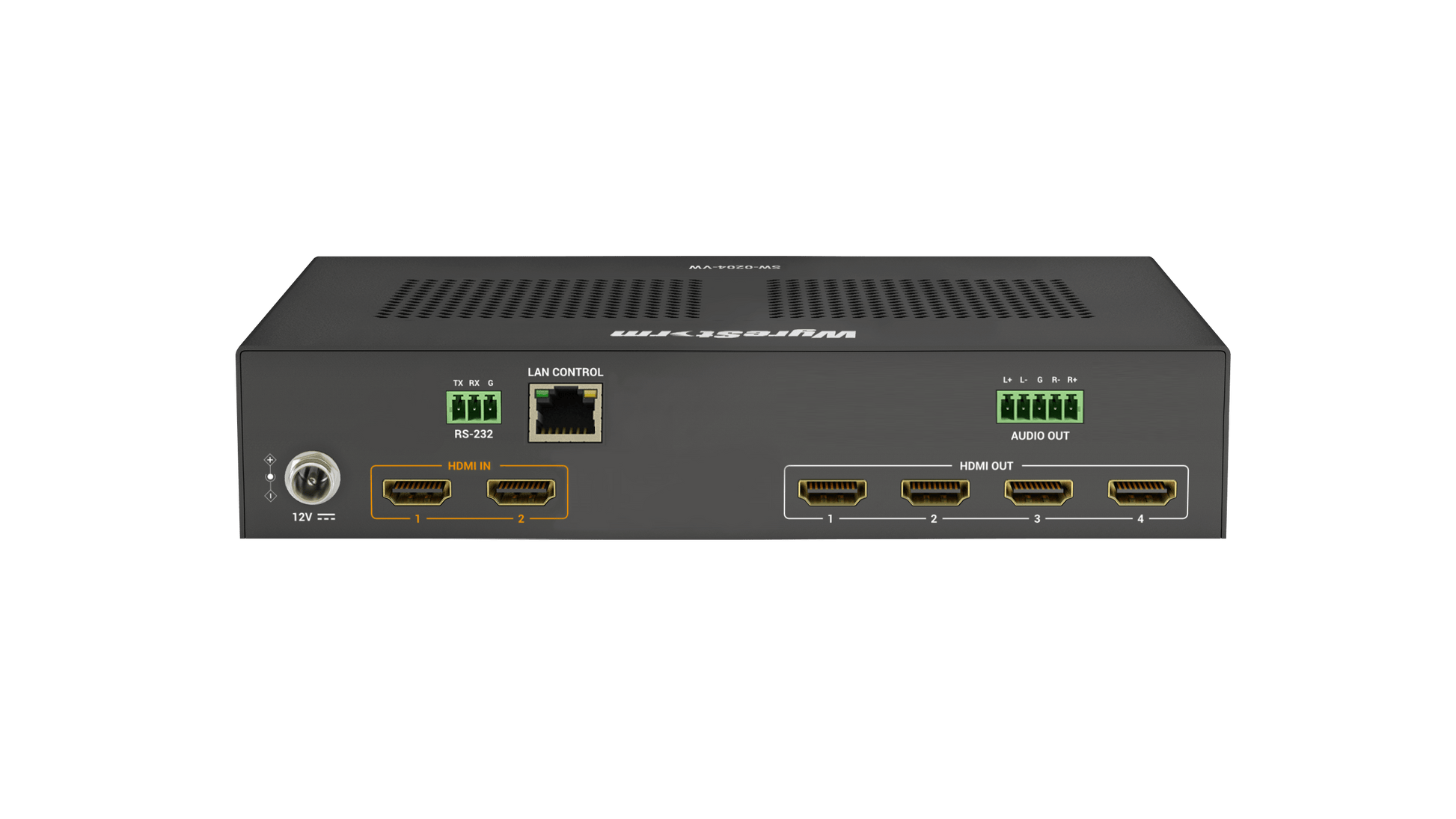

Inputs

2x HDMI IN: 19-pin type A

Outputs

4x HDMI OUT: 19-pin type A
1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input)

Audio Formats

PCM 2ch Analog

Input Video Resolution

800 x 600⁸, 1024 x 768⁸, 1280x720P^6,7,8 , 1280 x 768⁸, 1280 x 800⁸, 1280 x 960⁸, 1280 x 1024⁸, 1360 x 768⁸, 1366 x 768⁸, 1440 x 900⁸, 1600 x 900⁸, 1600 x 1200⁸, 1680 x 1050⁸,1920x1080P^6,7,8 , 1920 x 1200⁸, 3840 x 600⁸, 3840x2160P^2,3,5,8* , 4096x2160P^2,3,5,8*

^{1=at 23.98 Hz, 2=at 24 Hz, 3=at 25 Hz, 4=at 29.97 Hz, 5=at 30 Hz, 6=at 50 Hz, 7=at 59.94 Hz, 8=at 60 Hz, 9=at 100 Hz, 10=at 120 Hz}

Output Video Resolution (Max)

Auto-Scaler (scale up and down to any resolution —
up to 4K@60Hz)
1920x1080p @60Hz 4:4:4 8bit
3840x2160p @60Hz 4:4:4 8bit
4096x2160p @60Hz 4:4:4 8bit

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.3 | EDID | CEC

RS-232

1x RS-232: 3-pin Phoenix Female | Video-Wall Processor Control
Routable RS-232 Device Control | Telnet commands supported

Ethernet

1x LAN: 8-pin RJ-45 Female | Web UI | Video-Wall Control and Ethernet

POWER

Power Supply

DC 12V/3A

ENVIRONMENTAL

Operating Temperature

0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature

-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

DIMENSIONS & WEIGHT

Dimensions

42mm/1.65in x 215mm/8.46in x 140.2mm/5.52in

REGULATORY

Supported Standards

DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020
