WYRESTORM 4- INPUT SWITCHER W/DSC,SCALING &USB HOST SW740TX
WYRESTORM 4- INPUT SWITCHER W/DSC,SCALING &USB HOST SW740TX
SKU:SW740TX
Login to view pricing.
Shipping calculated at checkout.
Sold As: EACH
Utilizing the best in HDBaseT technology, the SW-740-TX harnesses the power of the Class C specification to deliver 5-play functionality over 100m/328ft of Cat6 cable. 4K/UHD video, Ethernet, Control & Power (PoH) can be sent to a remote display location via a compatible receiver whilst USB2.0 device data can be fed back via the USB host or USB-C ports to a connected source. The SW-740-TX has 4 switchable source inputs: 2 HDMIs supporting 18Gbps video up to 2160p 8-bit RGB/4:4:4 thanks to DSC compression, VGA, and USB-C supporting not only 4K/30 video, but device data from the connected receiver and device charging; the stereo audio input can be assigned to the VGA source or sent separately to the receiver.

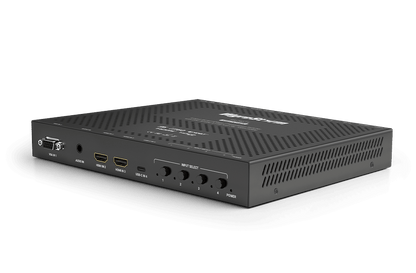

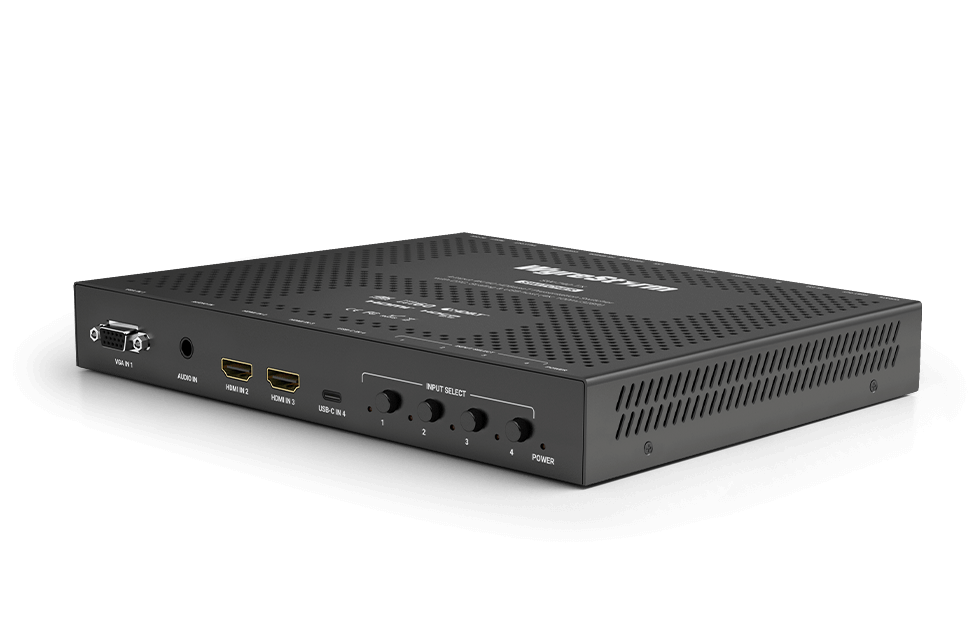

Inputs
1x VGA In: 15-pin VGA
1x USB-C
2x HDMI In: 19-pin type A
1x Audio In: 3.5mm (1/8in) TRS Stereo

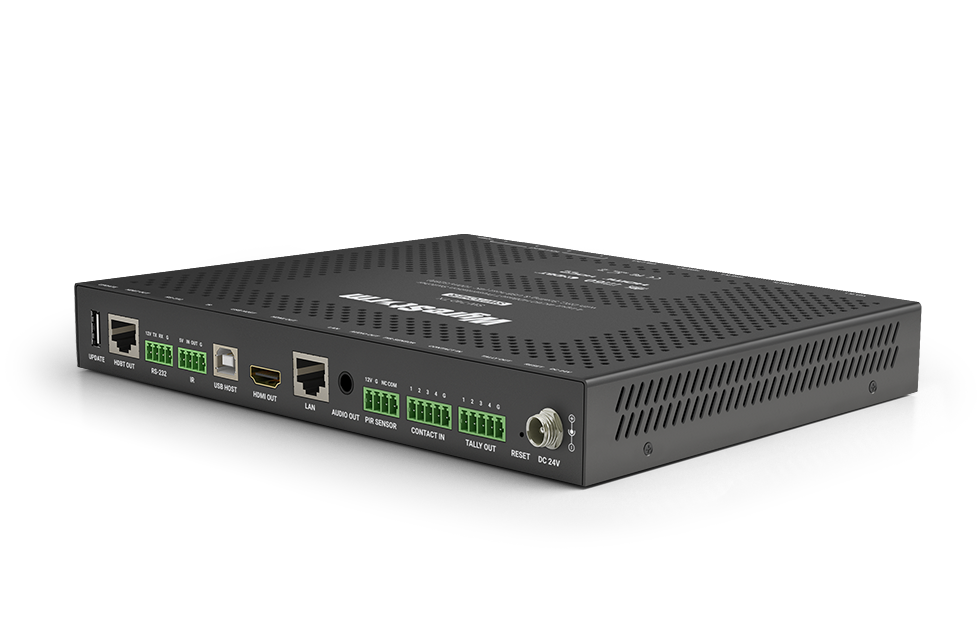

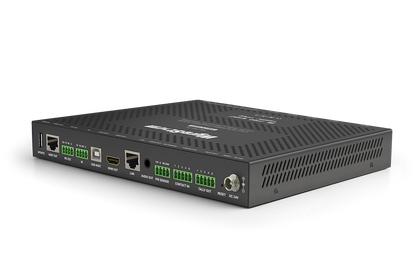

Outputs
1x HDMI Out: 19-pin type A
1x Audio Out: 3.5mm (1/8in) TRS Stereo
1x HDBT Out: 8-pin RJ-45 Female
Video Encoding
HDBaseT™ Class C
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (micro seconds)
Audio Formats
2ch and multichannel LPCM
Video Resolution (Max)
1920x1080p @60Hz 8bit
1920x1080p @60Hz 16bit
3840x2160p @60Hz 8bit 4:4:4
4096x2160p @60Hz 8bit 4:4:4
Supported Standards
DCI | RGB
Maximum Pixel Clock
600MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB | Serial
RS-232
1x 4-pin Phoenix (Control)
Ethernet
1x 8-pin RJ-45 female | Bidirectional over HDBaseT™
IR
1x 4-pin Phoenix (Pass-through)
USB
1x USB-C: USB 3.1
1x USB Host: USB-B
Data Rate: 190Mbps
CEC
Auto, Manual Display Power through HDMI & HDBT Output
Other
PIR Sensor: 1x 4-pin Phoenix
Contact Input: 1x 5-pin Phoenix
Tally Output: 1x 5-pin Phoenix
POWER
Power Supply
24V DC 6.66A
Max Power Consumption
Standard: 45W | With USB Charging: 110W
USB-C
Max. 20V charging (65W)
