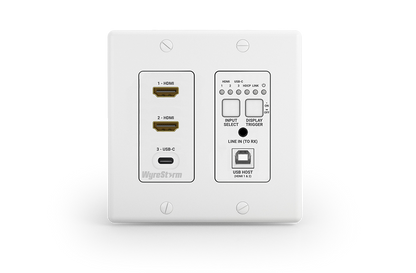

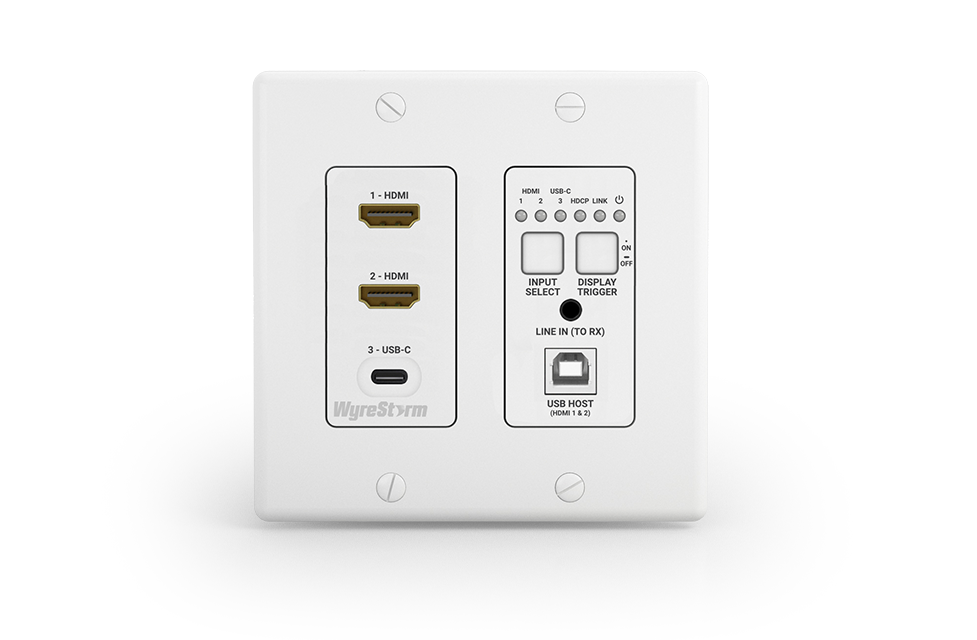

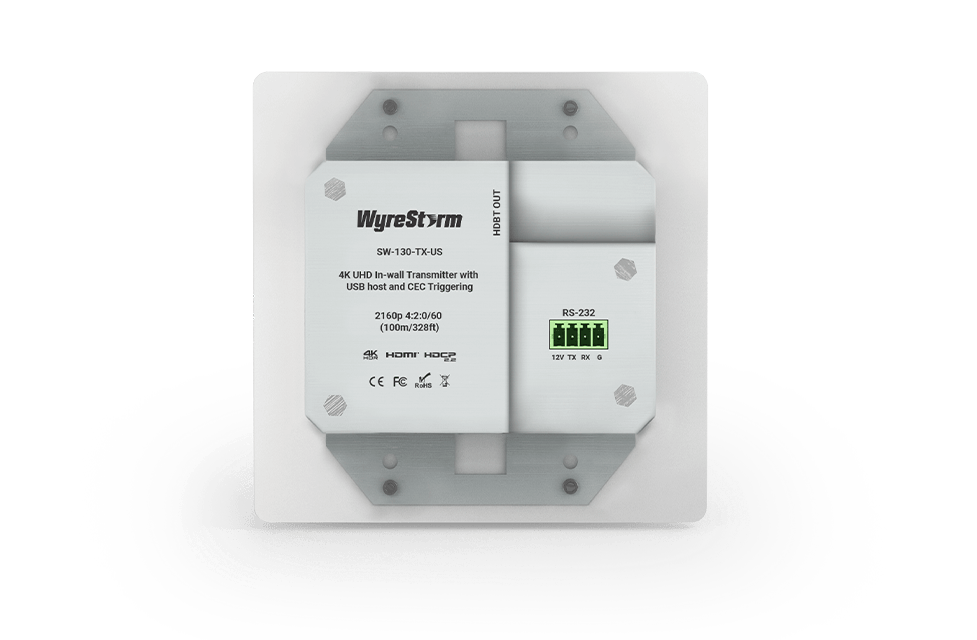

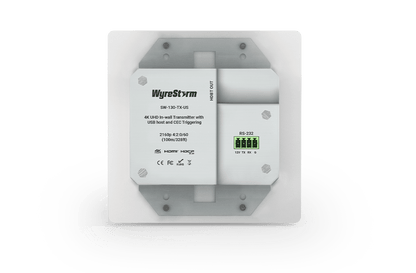

3 inputs and powerful HDBaseT transmission result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI’s or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.
TRANSMISSION
Transmission Encoding
HDBaseT Class C | PAM16 Encoding
End to End Latency
10µs
Max. Transmission Bit Rate
10.2Gbps
VIDEO
HDMI
(v2.0b) TMDS | 340MHz Maximum
Inputs
2x HDMI In: 19-pin type A1x USB-C In: USB 3.1c Audio/Video (4.5Gbps)
