Product Features

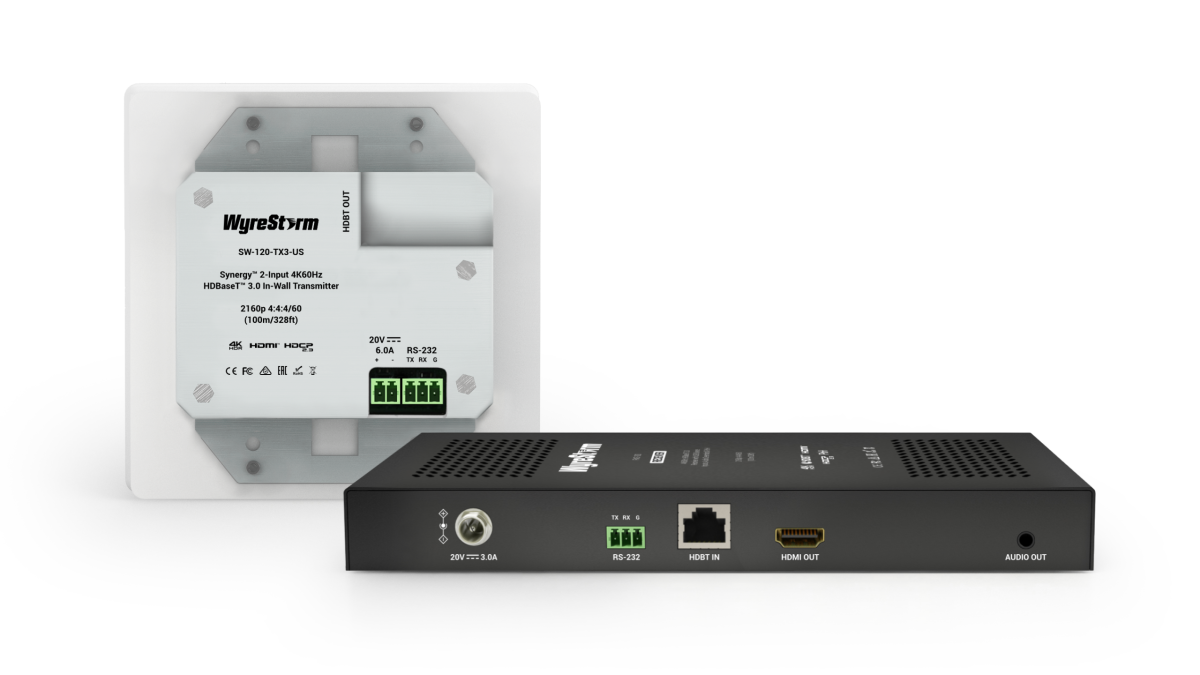

SW-120-TX3-US
- HDBaseT 3.0 Switching Transmitter supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 passthrough offering 300Mbps transfer and HID extension
- Features USB-C charging of up to 60 watts (with compatible PSU, not included)
- Supports independent analog audio lane (pass-through) transmitter to receiver
- Bidirectional RS-232 and CEC pass-through communication
- Shared RS-232 port; API control or passthrough to RX
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
- Bidirectional PoH
RX3-100
- HDBaseT 3.0 Receiver supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 passthrough offering 300Mbps transfer and HID extension
- Features 3x USB device ports
- Supports independent lane analog audio pass-through from transmitter to receiver
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
In the Box
SW-120-TX3-US
- 1x SW-120-TX3-US In-Wall Transmitter
- 1x 1.8m USB2.0 Type-B to Type-A Cable
- 1x 2m USB-C to USB-C Cable with Locking Connector (5Gbps)
- 1x 3-pin Terminal Block
- 1x 2-pin Terminal Block
- 1x Wall Plate (2-gang US)
- 4x Mounting Screws
- 1x Quickstart Guide
*20v 6a PSU Sold Separately
RX3-100
- 1x RX3-100 HDBaseT 3.0 Receiver
- 1x 3-pin Terminal Block
- 4x Wall Mounting Brackets
- 4x Mounting Screws
- 1x 20V 3A PSU*
- 1x Quickstart Guide
*Does not support USB-C charging on TX
