50m HDMI 2.0b (18gbps) 1x4 HDMI Splitter on category cable

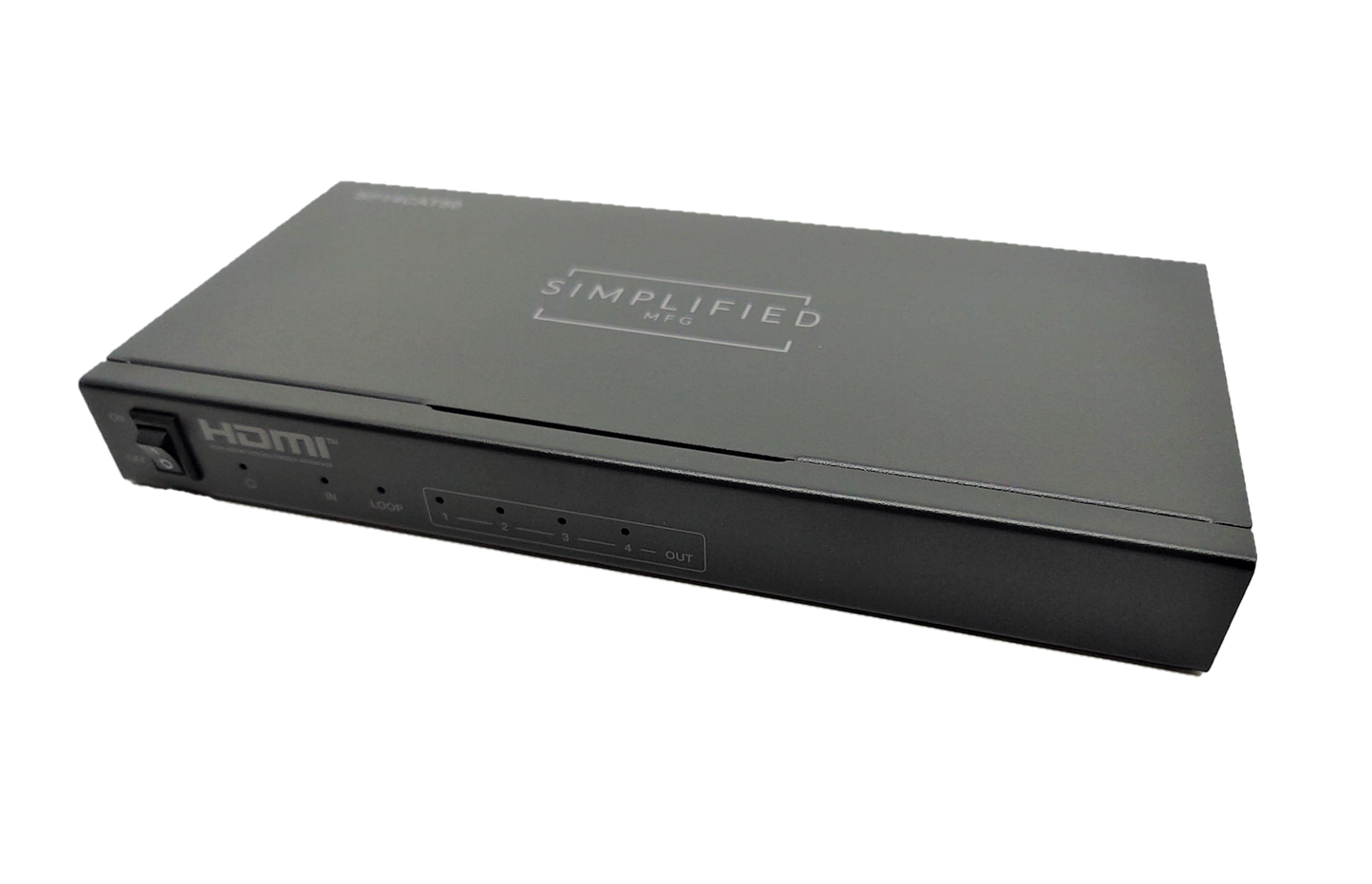

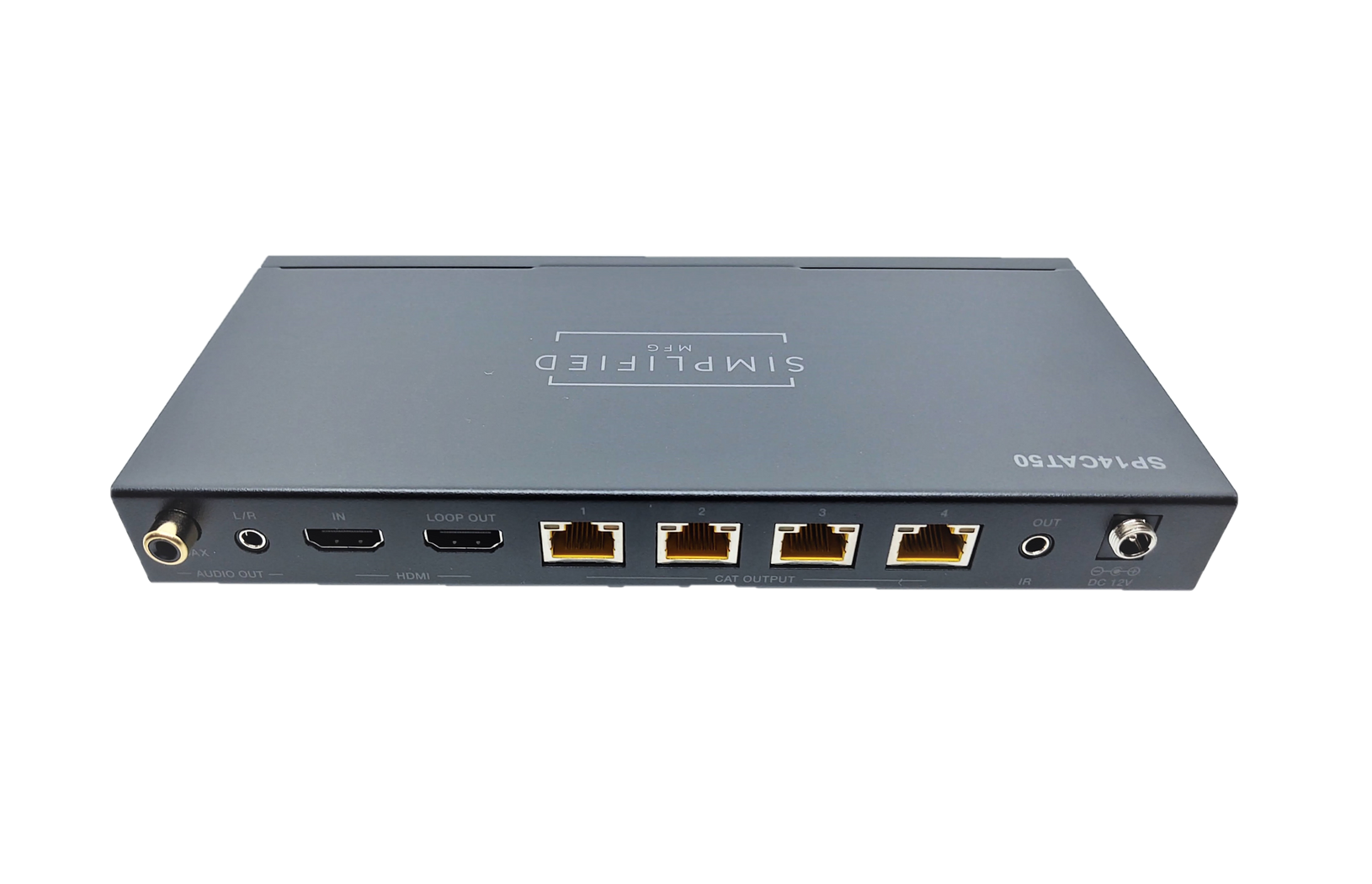

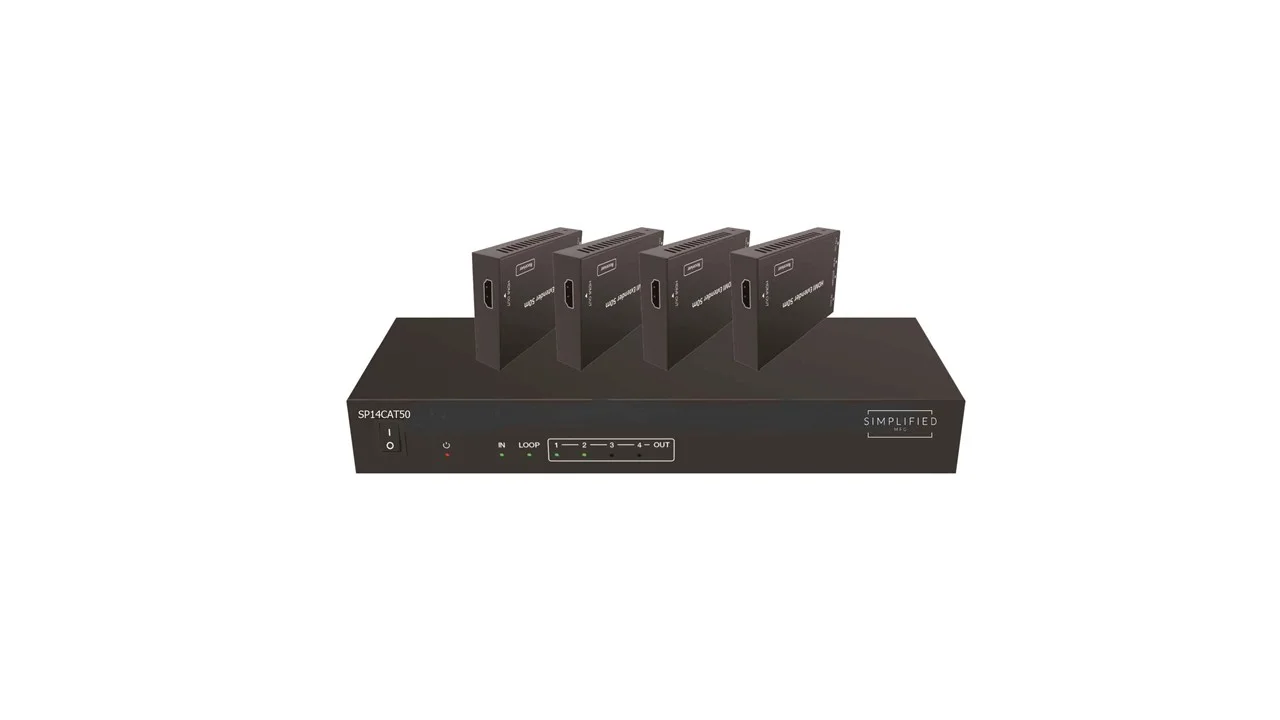

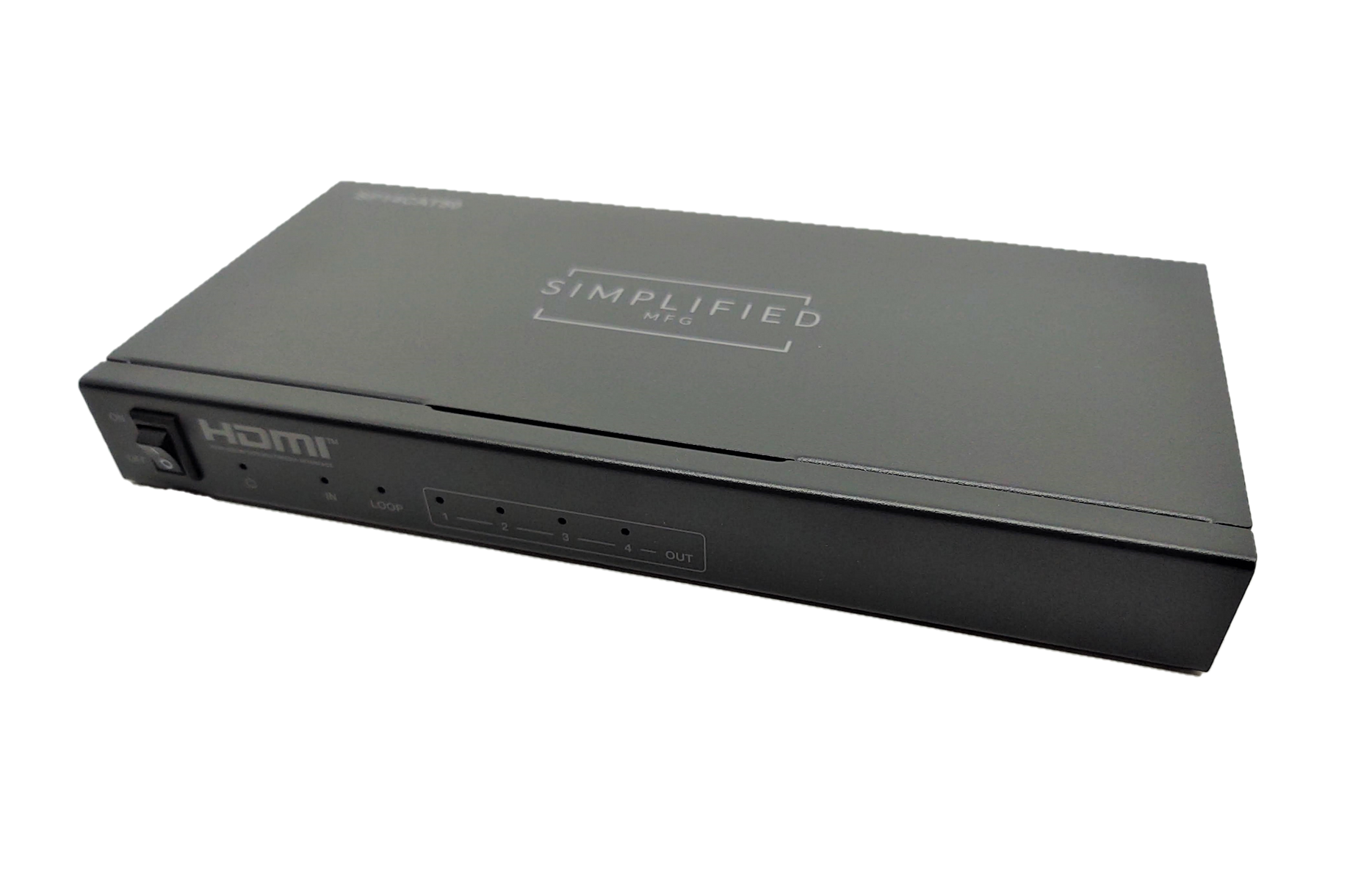

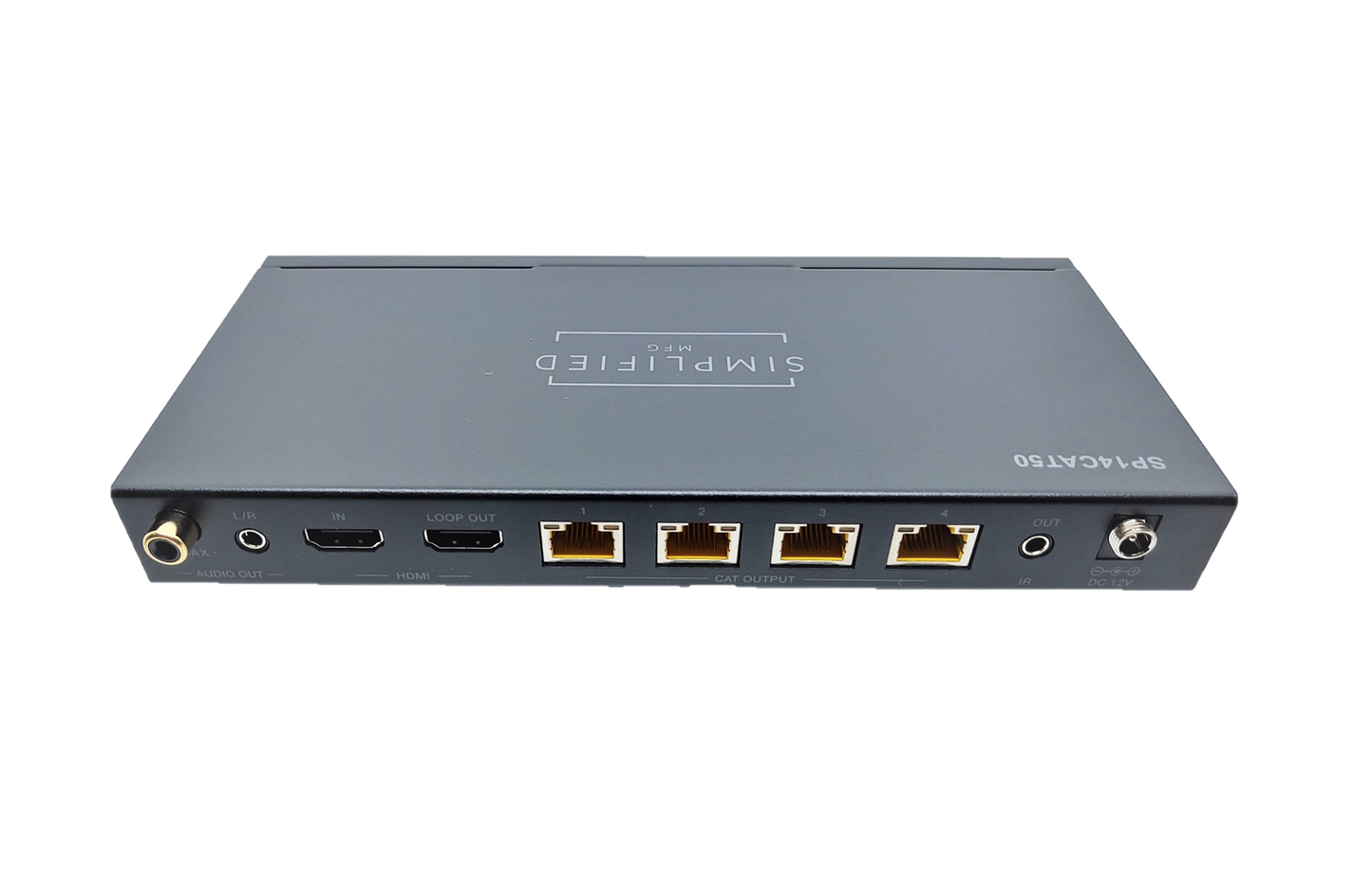

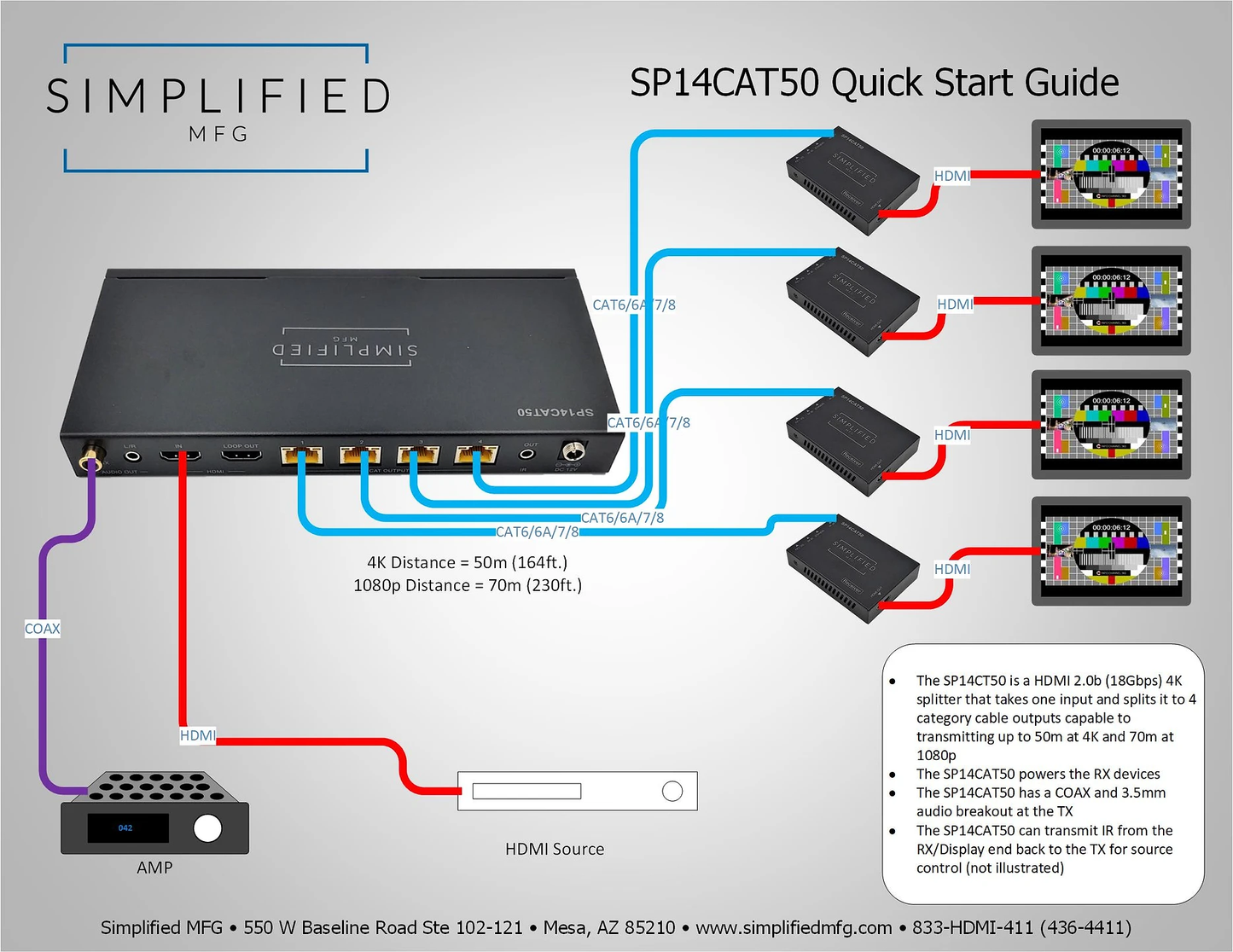

The SP14CAT50 is an18gbps 4K/UHD Splitter 1 to 4 HDMI splitter over category cable. The SP14CAT50 supports HDCP 2.2/1.4 and is a solution for splitting a single HDMI input to four HDMI outputs where you need to send the output over distance. The receivers are powered by the TX, compact (about the footprint of a credit card). EDID can be managed from the TX with the ability to copy or use EDID from the integrated EDID library. The SP14CAT50 is rated at 50m at 4K and 70m at 1080p while supporting the all latest features of the most advanced HDMI 2.0b signals including HDR10+. IR from the RX devices are returned to the TX for source control. The technology used is also very efficient, this device only draws 14W. Also, there is a loop out to cascade more devices to make a larger splitter. Also see the SP18CAT120 for more outputs and a longer distance.
