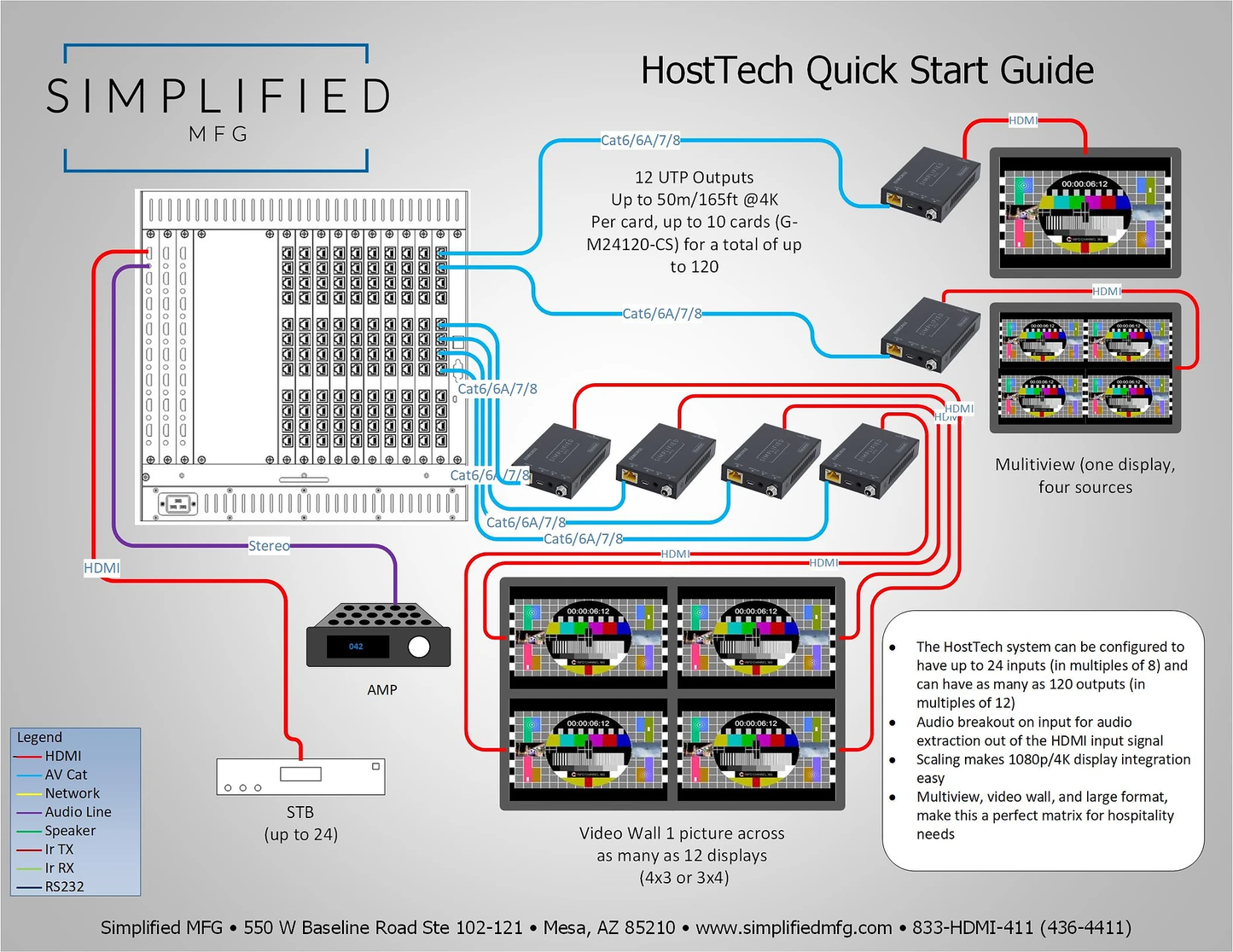

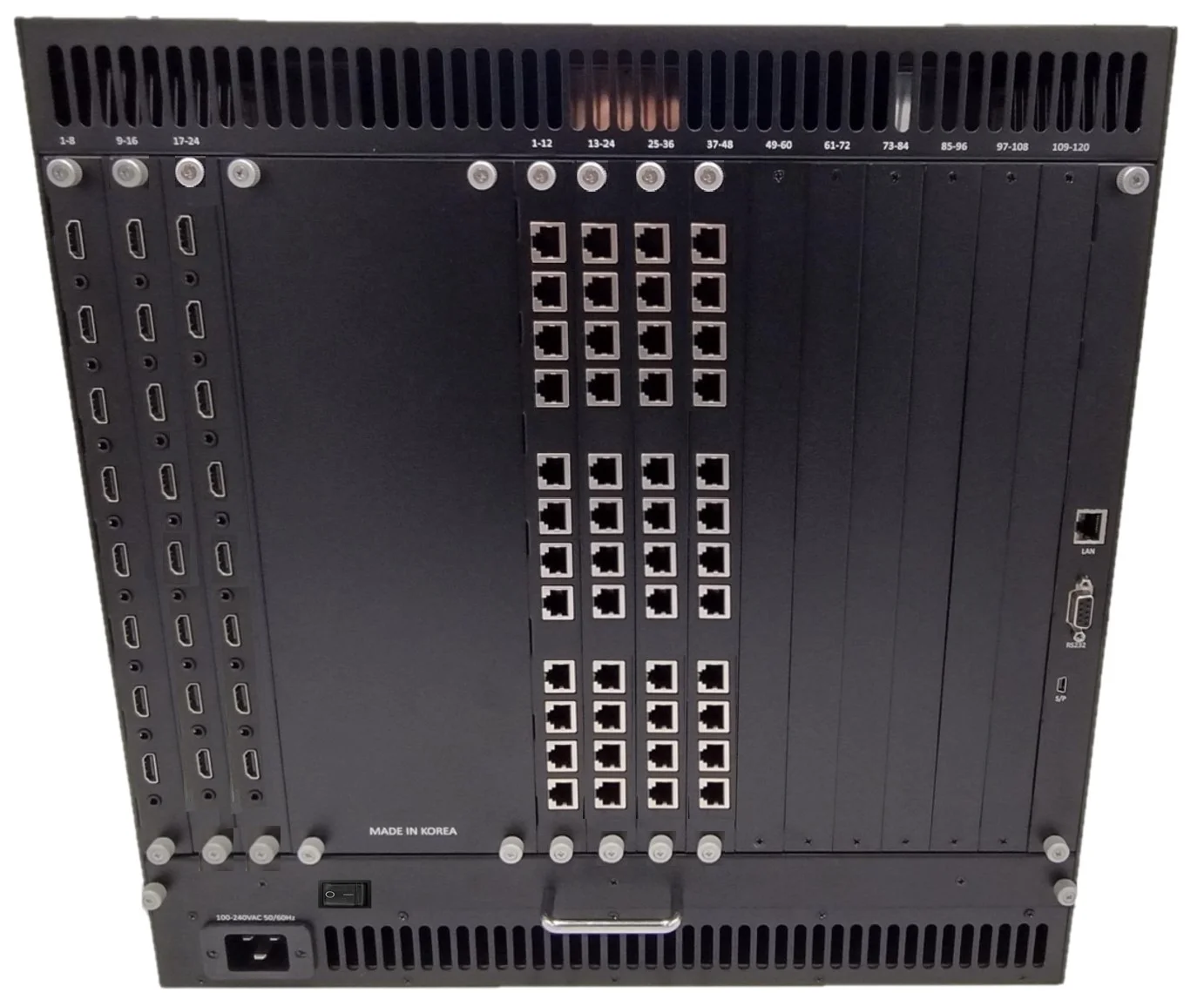

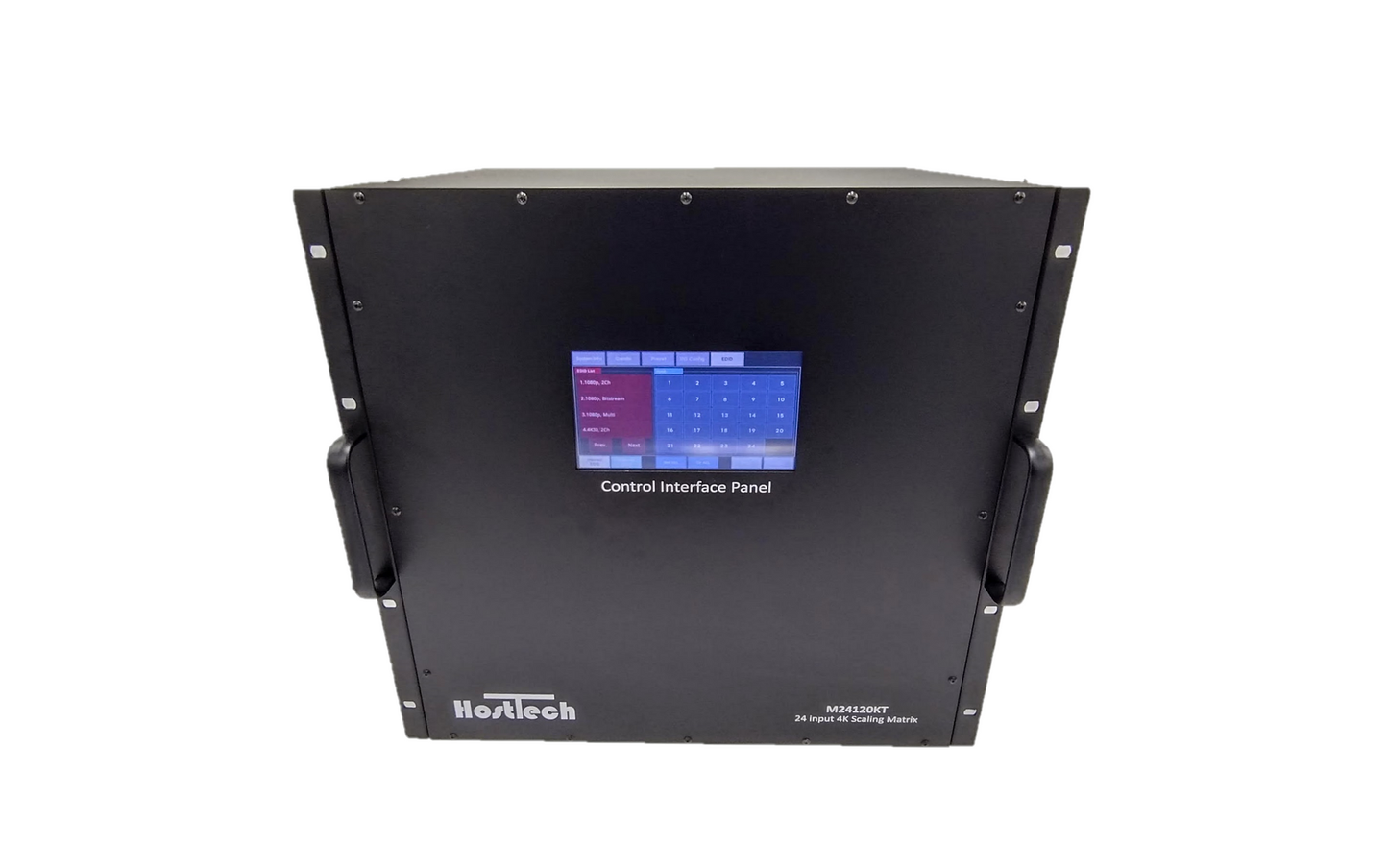

The HostTech system is a new way to experience full 4K signals in a large format matrix that provides all the features without all the compression of an AV over IP system. Not only does this system have better signal quality than most AV over IP systems, but is easier to deploy and at a lower cost than most 1080p systems. The HostTech system consists of 5 devices; Two mainframe chassis, an input card, an output card and compact receivers. The matrices are capable of 18Gbps 4K and provide Video Wall, multi-view, and traditional matrix switching. Scaling is automatic and there is no need to make any setting changes when changing displays. The input cards are have eight inputs and you can use up to three of them, so you can have 8,16, or 24 inputs. The output cards have twelve 50m UTP outputs (70m at 1080p). You can use up to six on the smaller capacity chassis (72 outputs) and up to 10 on the larger capacity chassis (up to 120 outputs)
