SIMPLIFIED 50M 4X4 SCALING HDMI MATRIX KIT W/ 4 RX MX44KT
SIMPLIFIED 50M 4X4 SCALING HDMI MATRIX KIT W/ 4 RX MX44KT
SKU:MX44KT
Scaling 50m 4K 4x4 HDMI Matrix Kit over CAT5e/6/7

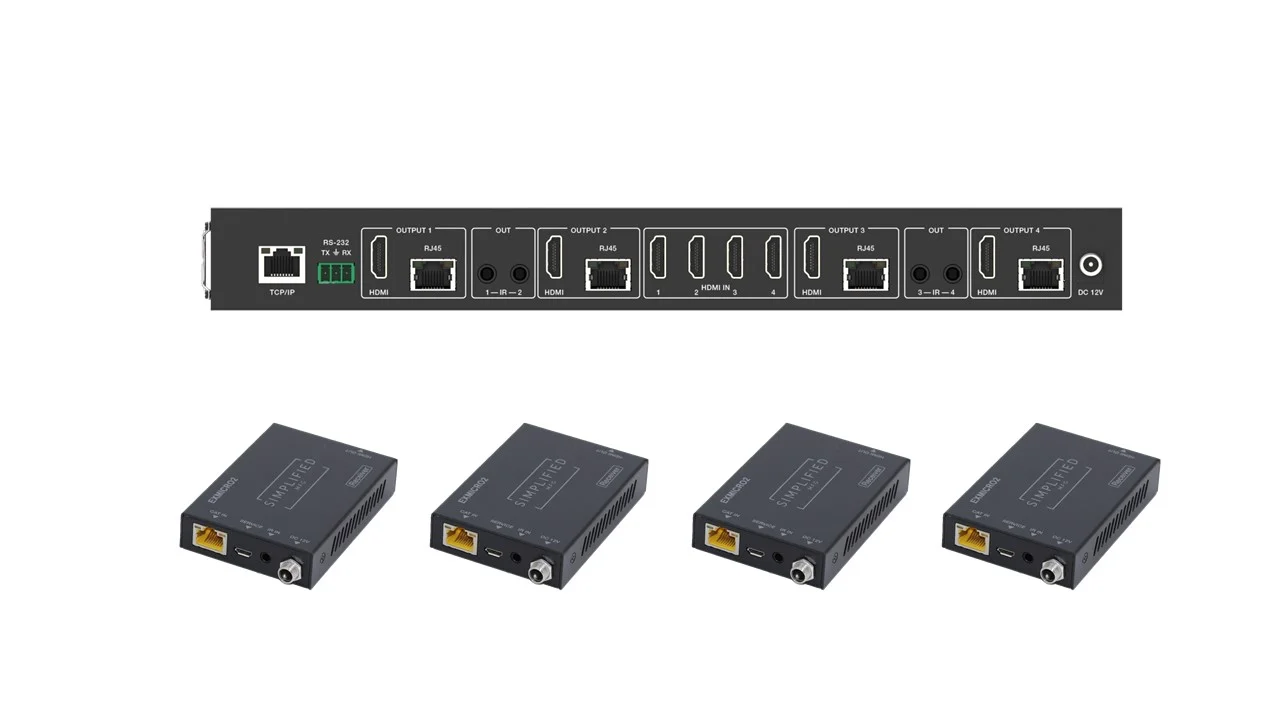

The MX44KT is a Scaling HDMI 2.0b HDBaseT 18Gbpsgbps 4x4 HDMI Matrix with included 70m HDMI 1080p (50m 4K) over category cable receivers. This matrix switch features simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources up to eight displays (two mirrored per output channel). Each output can scale independently. Output 1 can be one resolution without affecting the resolution of the other outputs. The MX44KT supports the transmission 4Kx2K@60Hz (4:4:4), and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The compact receivers included in this kit will extend the HDMI signal up to 230ft/70m (1080p) or 165ft/50m(4K) for multi-room connectivity. This matrix also supports HDR8/10/10+/DolbyVisiontm (HDMI output only, category output supports up to HDR10+). Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. The innovative web GUI can be used to set scaling, and EDID settings for easy setup.
