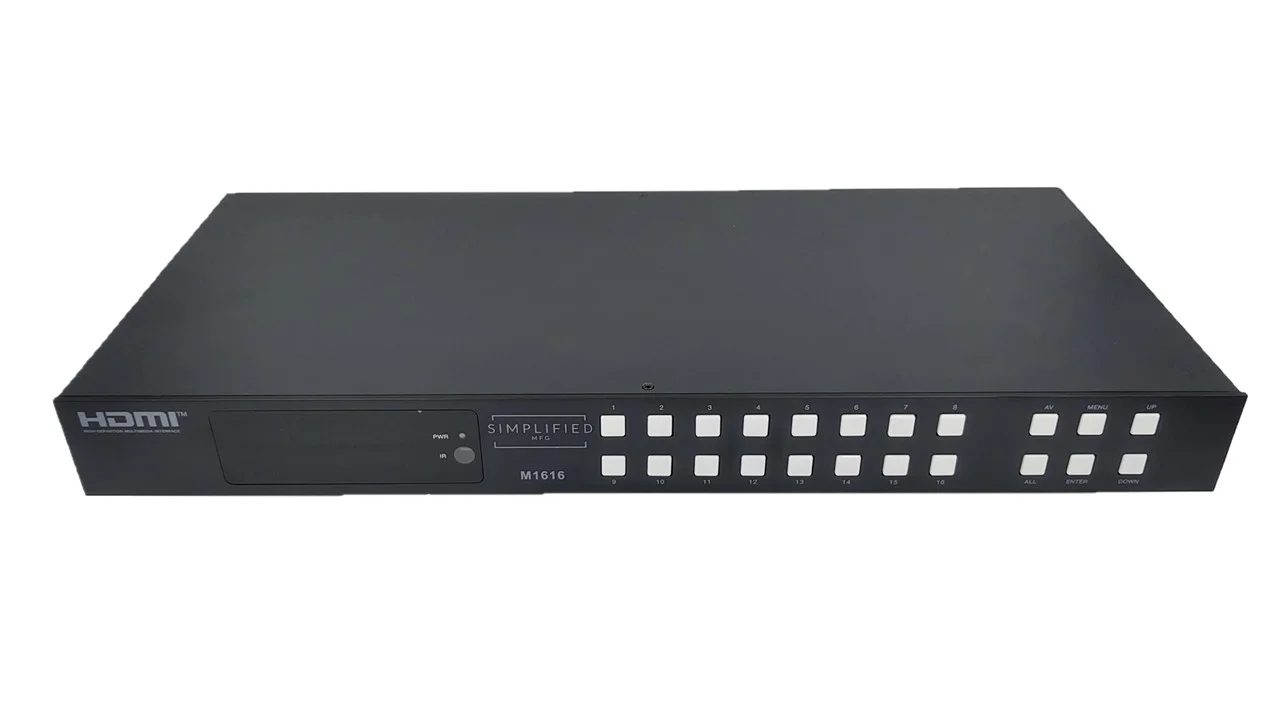

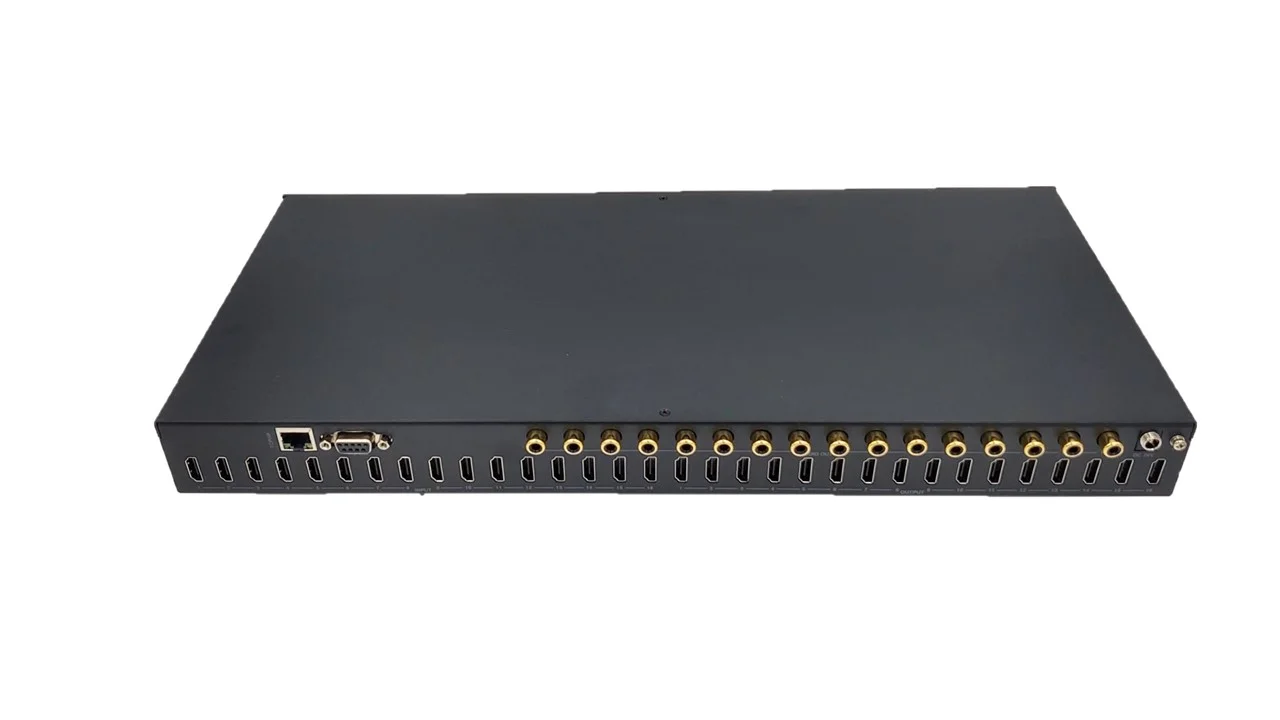

The M1616 HDMI Matrix features 16 HDMI inputs and 16 HDMI Scaling outputs. The M1616 supports video resolutions up to 2160p@60Hz Ultra HD 4:4:4 and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The M1616 will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. Each output can be set to scale independently of the other. ARC audio is supported when used with EXeARC1 extender sets. The innovative web GUI can also allow for setting up presets video switching, outputting ARC from displays, scaling and controlling sources and displays with CEC. The M1616 is a space saving 1 RU in size.
