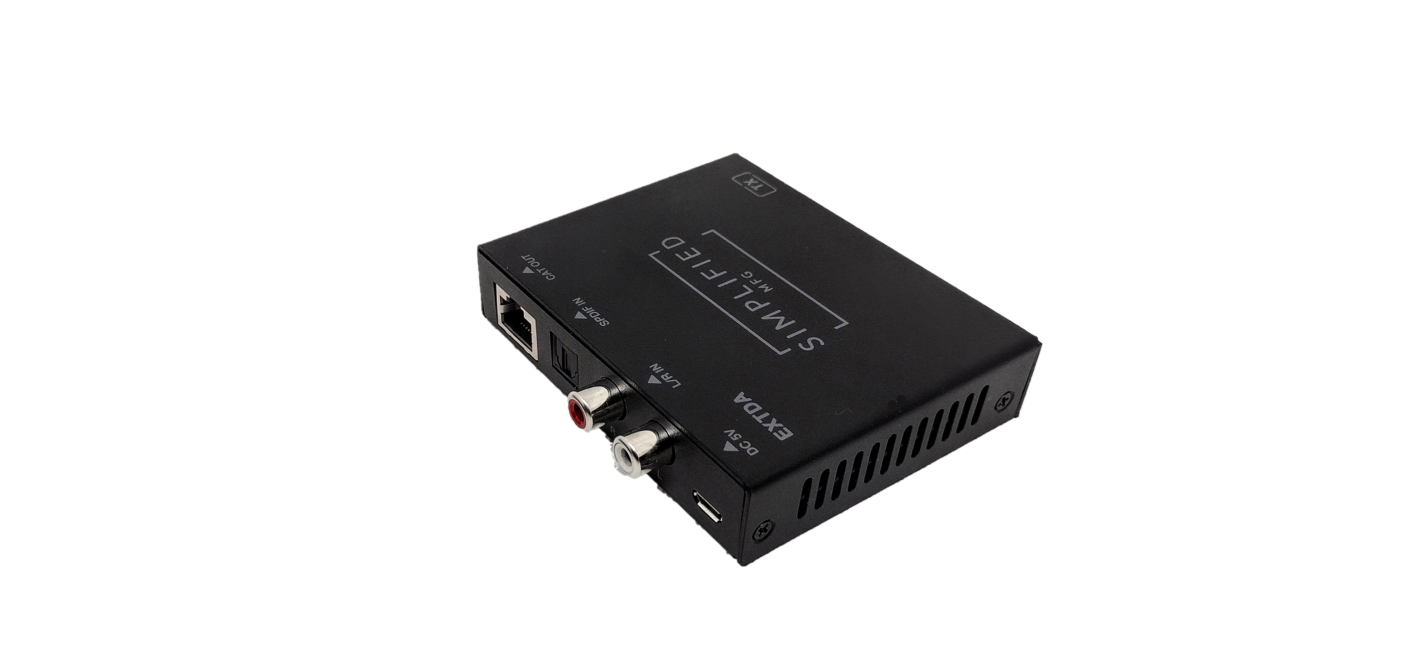

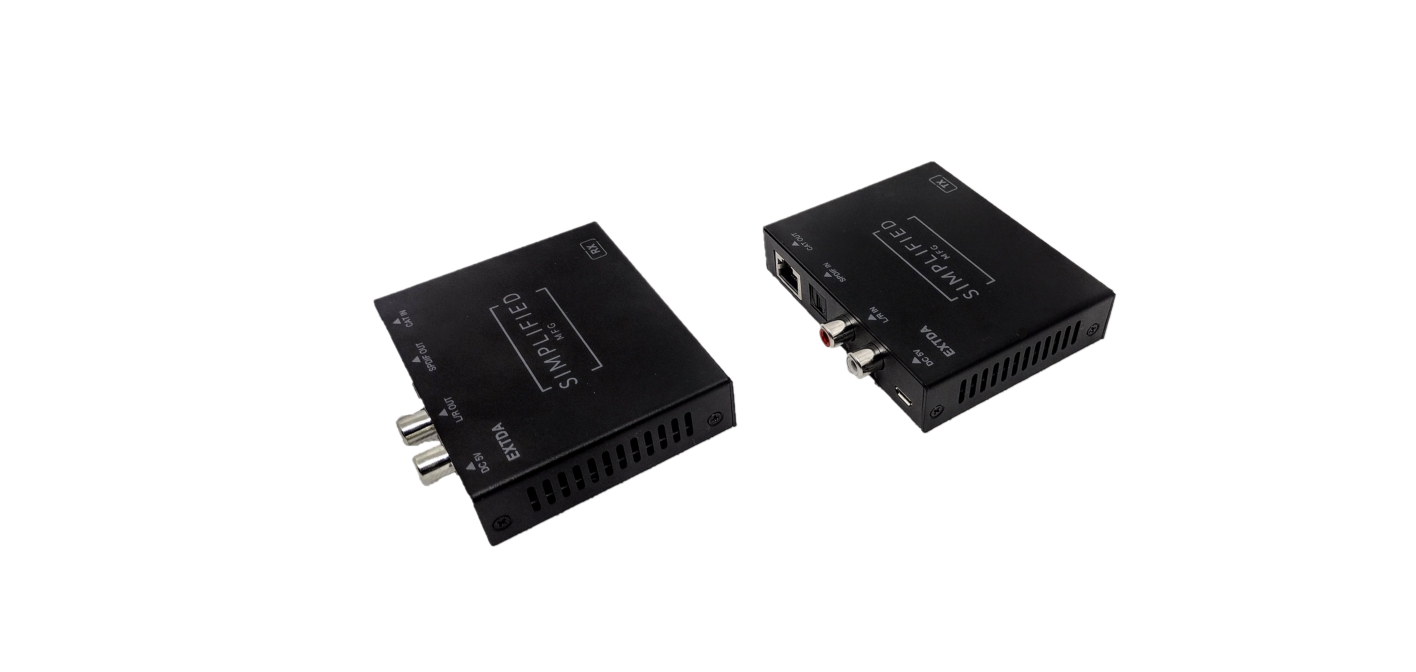

The EXTDA is a 100m digital audio extender that extends optical and/or RCA Analog formats over category cable

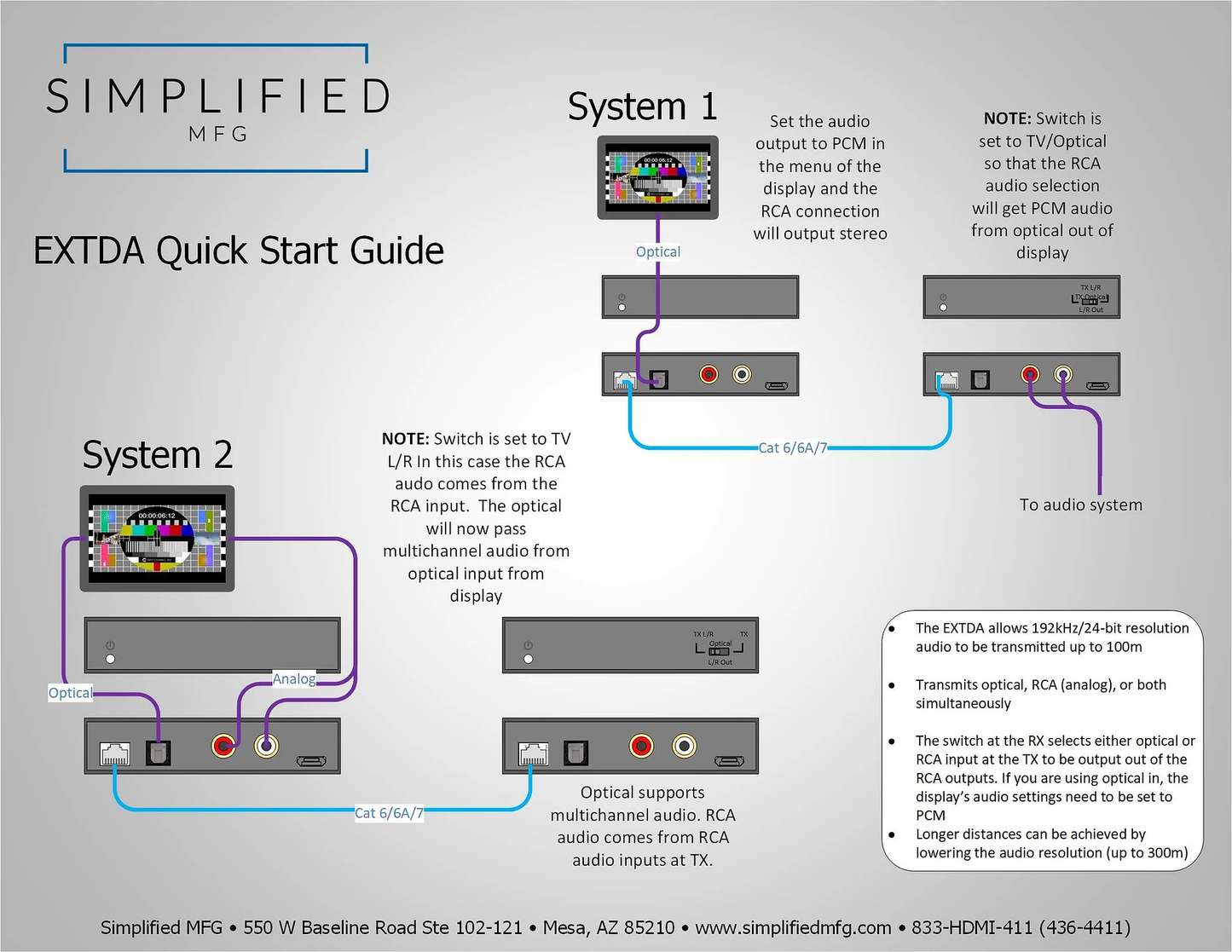

The EXTDA has an optical S/PDIF input and a pair of RCA inputs at the transmitter. The signal can be transmitted up to 100m at full bandwidth (192kHz.). Distances up to 300m can be achieved by lowering the sampling rate. The EXTDA can send both optical and RCA analog signals simultaneously and at the RX, the digital audio can be extracted in an analog format by selecting the TV/Optical switch (display audio has to be set to PCM). The EXTDA is compact and powers from either end via a Micro USB port
