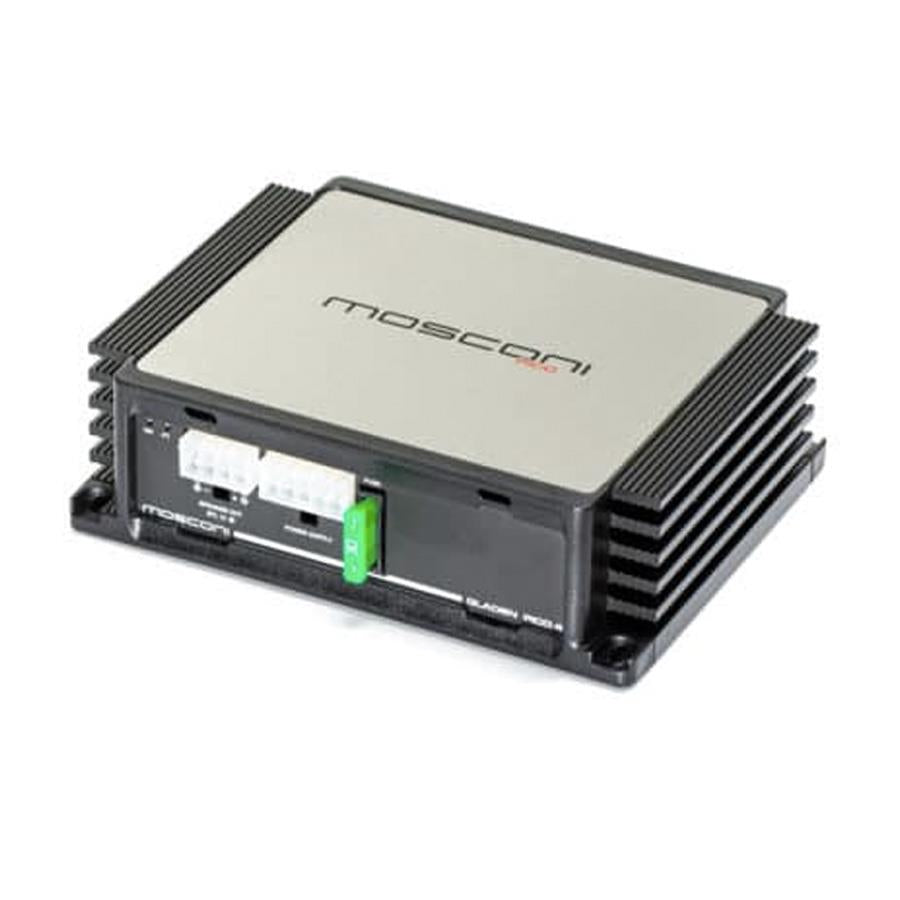

MOSCONI PICO SERIES 4X90W AMPLIFIER PICO4

SKU:PICO4

Shipping calculated at checkout.

High efficiency amplifier with 4 x 90 Wrms / 4 Ohm output power.
Fully bridgeable and 2 ohm stable, inputs high and low level.
Load resistor and ground lift selectable via jumpers, switchable active crossovers.
Ideal for use in smart OEM projects, or with the EXT4link patch cable as a supplement to a PICO 8|12 DSP.

Output Powers RMS @ 14.4V (1%THD)	4 x 90W stereo @ 4Ohm 2 x 85W + 1 x 245W bridged @ 4Ohm 2 x 240W bridged @ 4 Ohm
Input Sensitivity Range	1.5 V ÷ 20 V (High level mode) 0.3 V ÷ 4 V (Low level mode)
Onboard crossover filter configuration	HP (CH1/2) / HP or LP (CH3/4)
Onboard crossover filter slope	12dB/oct
Onboard crossover filter frequency	80Hz
Size and Weight	150 x 115 x 46mm, 1.4Kg
