| Amp Class |
Class Q1 Mono: Channel 5 (Class D), Class SQ (Class D) |
|---|---|
| Amp Total Channels |
5 |
| Amp Max Power (watts) |
700 |
| Amp Power @ 1 Ohm (ch x watts) |
1 x 350 Ch5 Only |
| Amp Power @ 2 Ohms (ch x watts) |
4 x 100 + 1 x 150 Ch5 |
| Amp Power @ 4 Ohms (ch x watts) |
4 x 50 + 1 x 150 Ch5 |

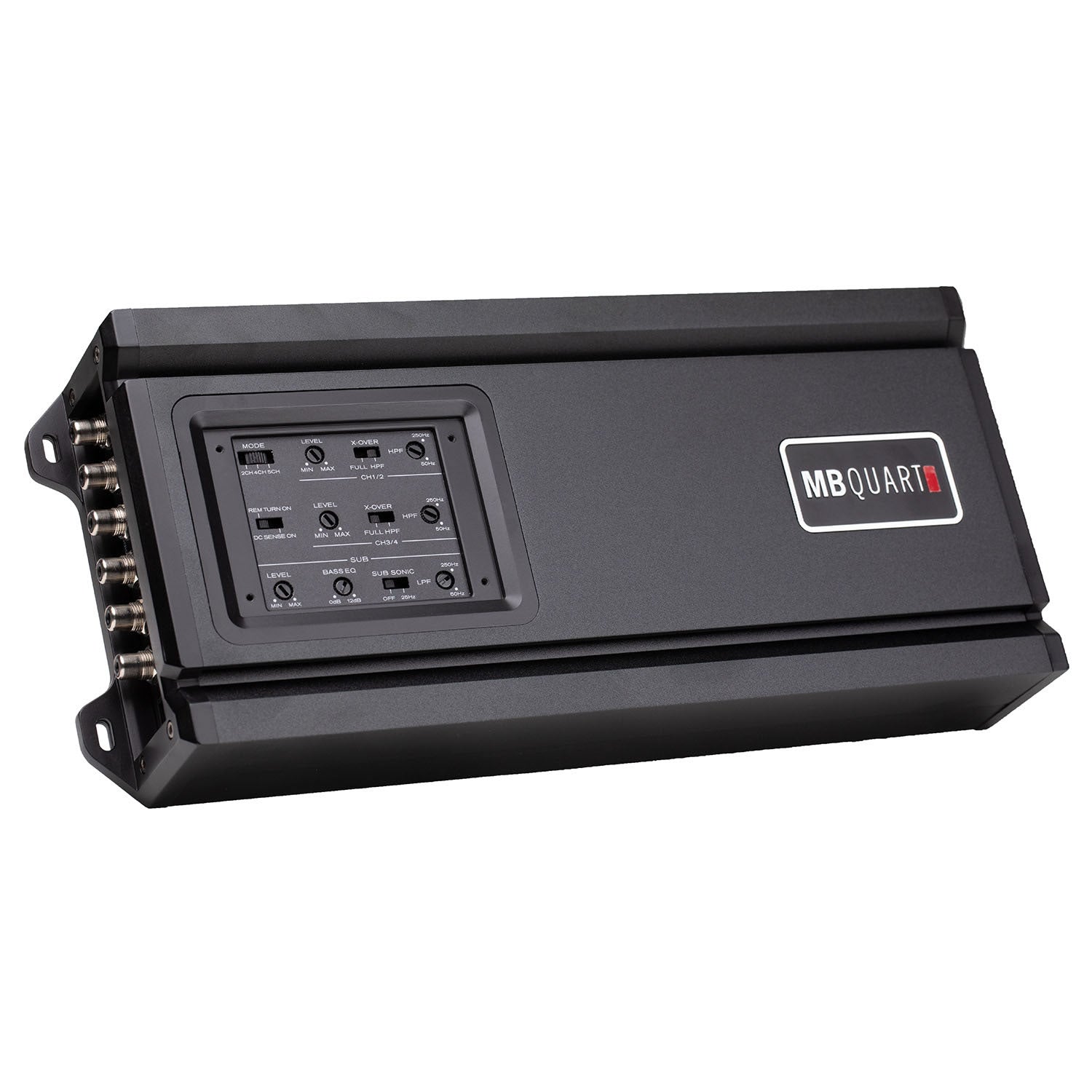

| Amp Crossover |
Electronic |
| Amp Variable High Pass Crossover 12dB per Octave |
CH1 & CH2: Switched Full/HPF 50Hz-250Hz, CH3 & CH4: Switched Full/HPF 50Hz-250Hz |
| Amp Variable Low Pass Crossover 12dB per Octave |
CH5 ONLY: Variable 50Hz-250Hz |

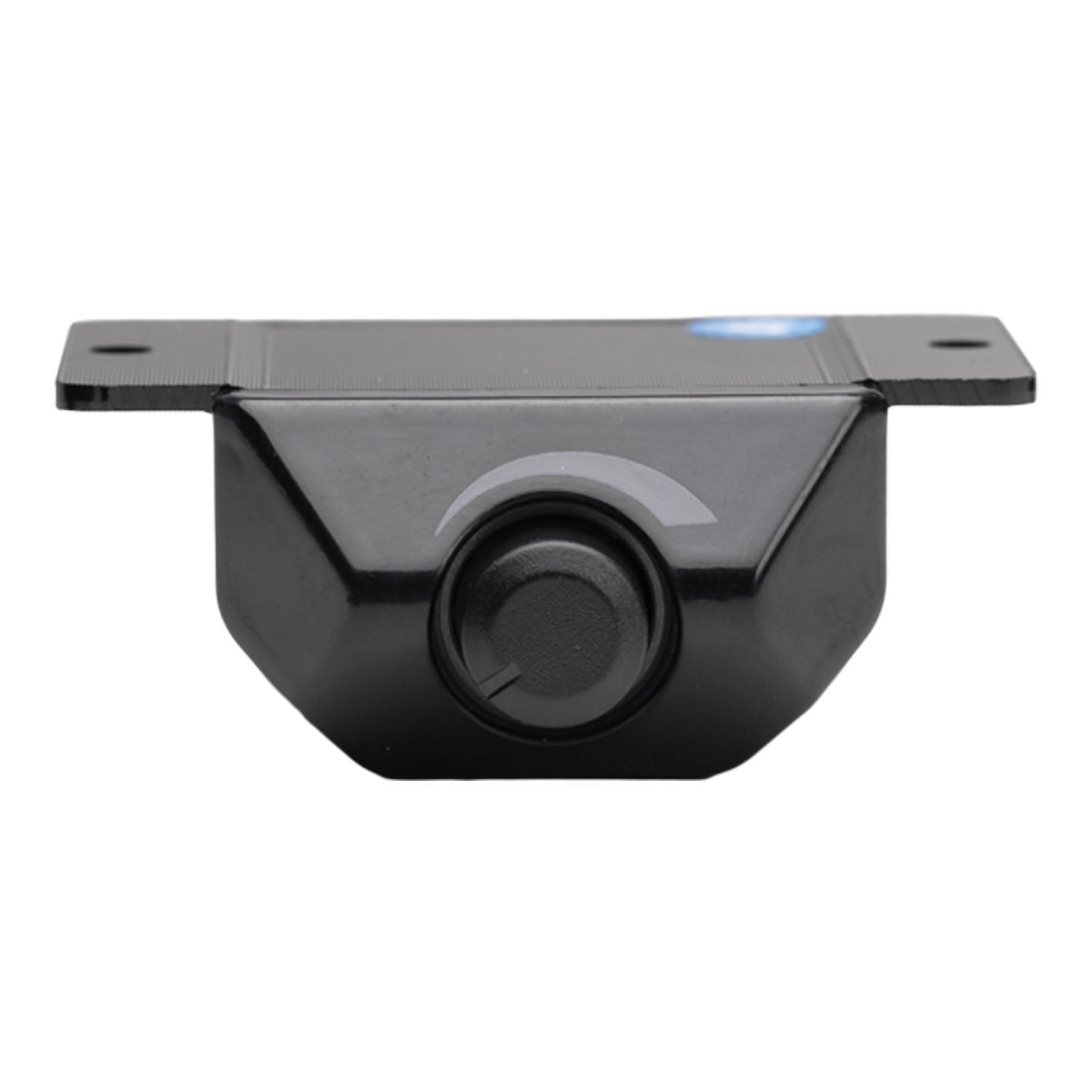

| Amp Bass Boost |
0-12dB |
| Amp Subsonic Filter |
OFF/25Hz |
| Amp Variable Voltage |
0.02-9V |
| Amp Signal to Noise |
> 101dB |
| Amp Frequency Response |
10-35kHz Ch1-4 | 10-250Hz Ch5 |
| Amp Total Harmonic Distortion (THD) |
< 0.07% |

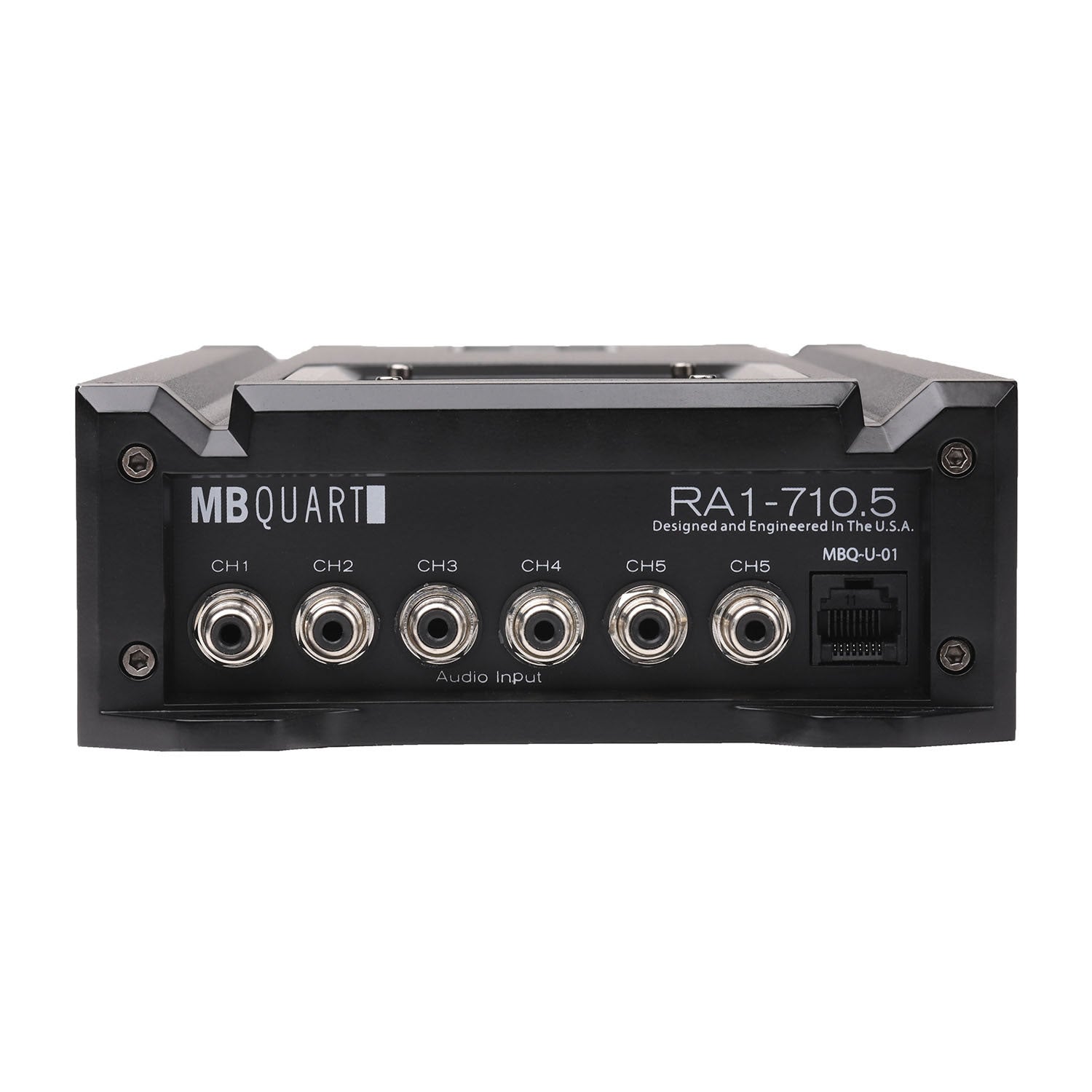

| Amp Speaker Level Audio Inputs |
RCA |

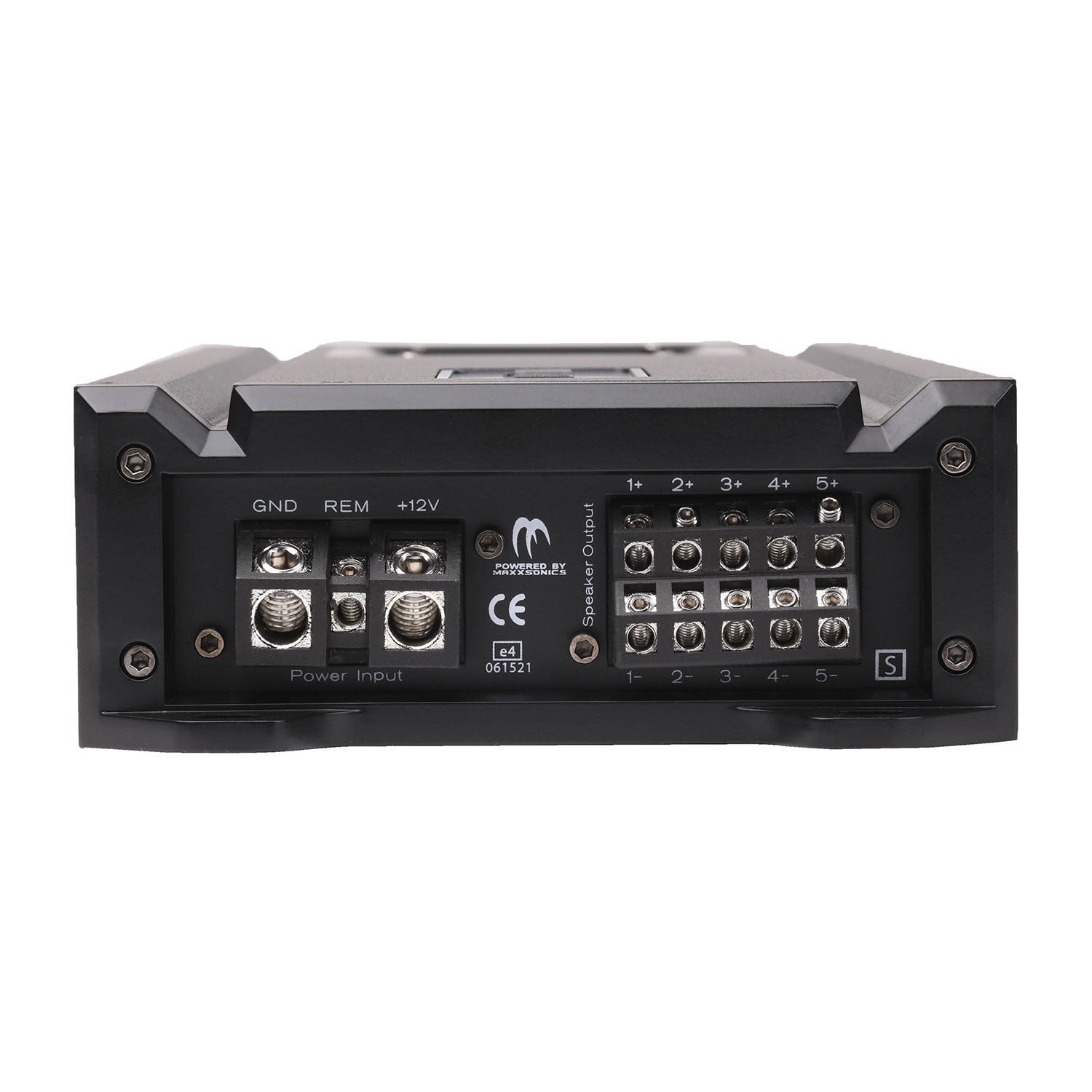

| Amp Power Terminal 12v/GND |
4 AWG |
| Amp Speaker Terminal Wire Gauge |
12 AWG |
| Amp Fusing |
80A External |
