Cicada

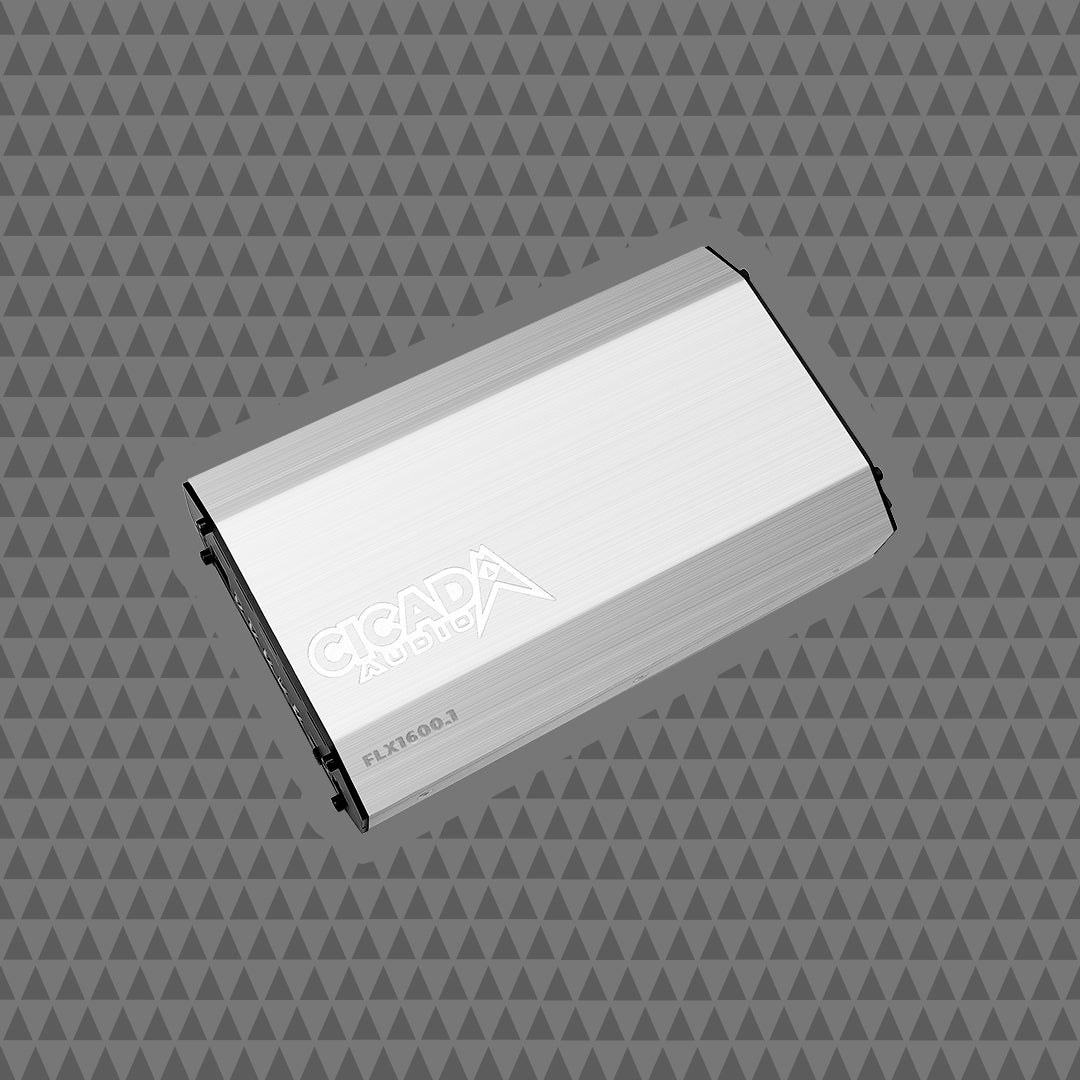

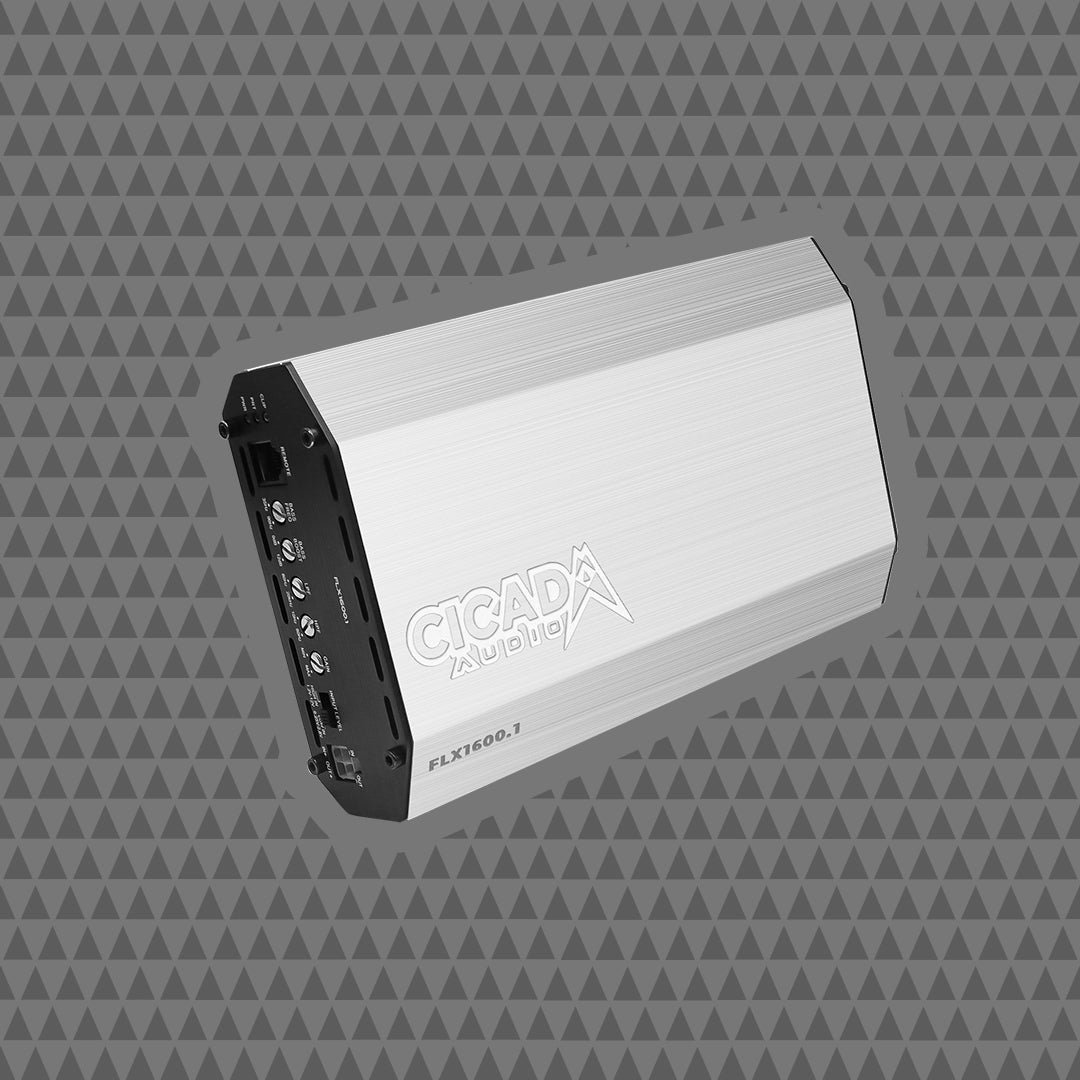

CICADA FLEX 1X1600W AMPLIFIER FLX16001
CICADA FLEX 1X1600W AMPLIFIER FLX16001
SKU:FLX16001
Login to view pricing.
Shipping calculated at checkout.
Requires 4 AWG Power Wire – HDPG4K
- 1 X 670 WRMS into 4 ohms @ 12.5 Vdc
- 1 X 950 WRMS into 4 ohms @ 14.4 Vdc
- 1 X 1250 WRMS into 2 ohms @ 12.5 Vdc
- 1 X 1600 WRMS into 2 ohms @ 14.4 Vdc
- Frequency response – 10-20,000 +/- 3dB THD < 0.5%
- Operating Voltage: 9V – 16V
- Current Draw (Music): 70 A
- Current Draw (Max): 140 A
- Recommended Fuse (Music): 100 A
- Total Efficiency: 80%
- Damping Factor: 200
- SNR: 86dB
- Crossover HPF: 10 TO 80Hz
- Crossover LPF: 80 TO 20kHz
- Slope:12dB per octave
- Gain: 0.2V – 12 Vac
- Turn-On Configuration: REM/DC
- THD + N (10% Rated Power): 0.1%
- Product Dimensions (Inches / Millimeters): 8 x 4.9 x 2 in / 200 x 124 x 51 mm
